R-725.0P - RECOM Power

Description: Recom Switching Regulator, 6.5 → 28V Input, 5V Output, 2A

Download R-725.0P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

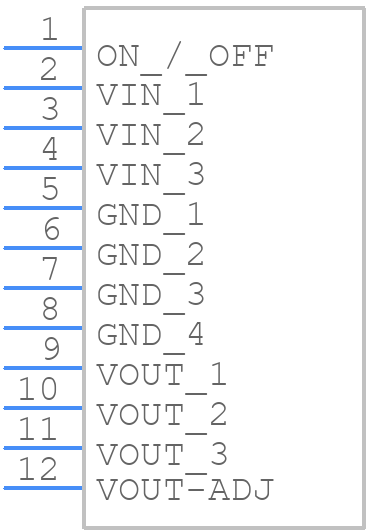

R-725.0P - RECOM Power - PCB symbol
click to zoom
PCB Footprints

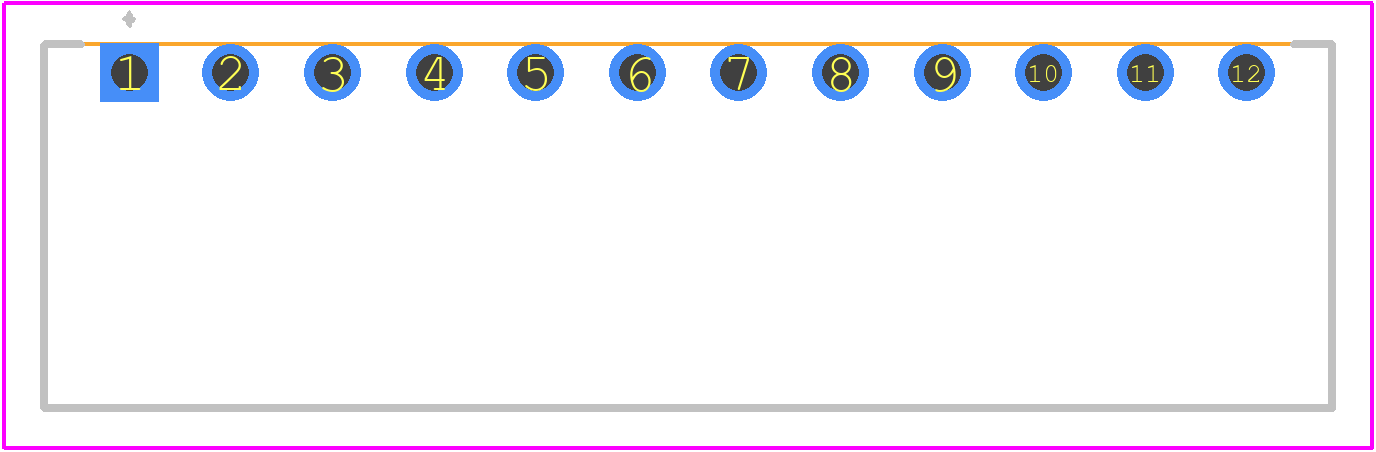

R-725.0P - RECOM Power PCB footprint - Other - Other - R-725.0P
click to zoom
3D Models
R-725.0P - RECOM Power - 3D model - Other - R-725.0P
click to zoom

R-725.0P Details

  • Manufacturer Part Number:

    R-725.0P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Package Description:

    SMA,

  • Pin Count:

    12

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    EN, IEC

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    96%

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    6.5 V

  • JESD-30 Code:

    R-PSMA-T12

  • Length:

    32.2 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OVER LOAD

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.024745 Vrms

  • Seated Height-Max:

    15.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    YES

  • Width:

    9.1 mm

R-725.0P Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
  • Yes, the R-725.0P is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB. Additionally, the module's thermal interface material should be suitable for high-vibration applications.
  • The maximum allowed capacitance on the output of the R-725.0P is 47uF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to use a capacitance value that is as close to the recommended value as possible.
  • The R-725.0P is designed to operate in a humid environment, but it's recommended to follow the recommended storage and operating conditions to prevent moisture-related issues. The module should be stored in a dry environment, and the operating humidity should be within the recommended range of 20% to 80% RH.
  • The recommended input fuse rating for the R-725.0P is 1A to 2A, depending on the input voltage and the application's requirements. It's recommended to consult the datasheet and the application notes for more information on fuse selection.
