- Part Number R-78K9.0-2.0
- Manufacturer RECOM Power
- Pin Count 3
- Part Category Power Supply
- Package Category Other

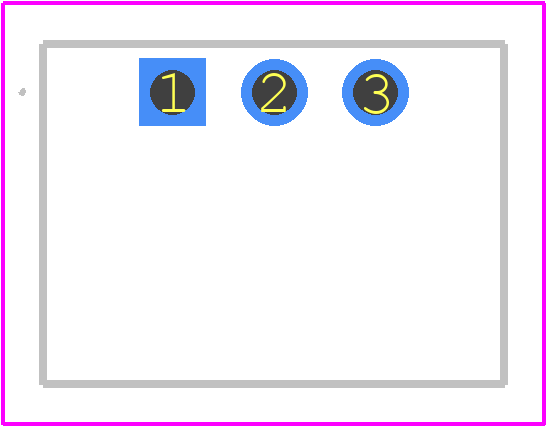

- Footprint Name Other - R-78K9.0-2.0-2
- Released Date Feb 17, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
R-78K9.0-2.0 Details
-
Manufacturer Part Number:
R-78K9.0-2.0
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
,
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Mainland China, Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
RECOM Power GmbH
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
R-78K9.0-2.0 Frequently Asked Questions (FAQs)
-
RECOM recommends a PCB layout with a large copper area connected to the tab of the R-78K9.0-2.0, and a thermal via connecting the top and bottom layers to dissipate heat efficiently.
-
Yes, the R-78K9.0-2.0 is designed to withstand high vibrations and can operate in environments with vibrations up to 10g acceleration.
-
RECOM recommends using a soldering iron with a temperature of 350°C to 380°C, and a soldering time of 2-3 seconds. The component should be soldered to the PCB using a solder with a melting point of 220°C to 240°C.
-
RECOM recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and a voltage rating of 25V or higher, as close to the input pins of the R-78K9.0-2.0 as possible.
-
Yes, the R-78K9.0-2.0 can be used in a redundant power supply configuration, but it's essential to ensure that the input voltage and current ratings are not exceeded, and that the output voltage is properly monitored and controlled.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
R-78K9.0-2.0 Overview

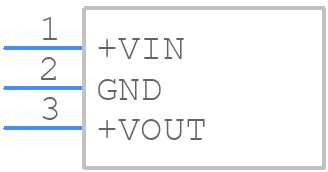

Use the download button to access the R-78K9.0-2.0 schematic symbol, PCB footprint, and 3D model.
