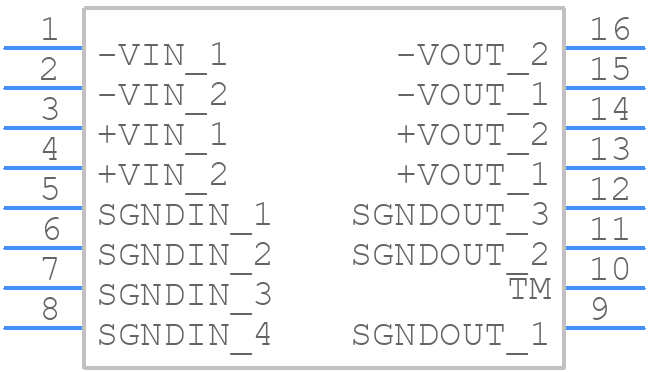

R05CTE05S-CT - RECOM Power

R05CTE05S-CT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  The recommended PCB layout for optimal thermal performance involves placing the converter on a thick copper plane (at least 1 oz) and using multiple vias to connect the plane to the internal layers. This helps to dissipate heat efficiently.
• How do I ensure reliable start-up of the converter in my application?
  To ensure reliable start-up, ensure that the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input voltage is within the specified range and that the input capacitance is sufficient to handle the inrush current.
• What is the maximum allowed capacitance on the output?
  The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
• Can I use this converter in a high-temperature environment?
  While the converter is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
• How do I troubleshoot issues with the converter, such as no output or low output voltage?
  To troubleshoot issues, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and the output voltage is within the specified tolerance. Also, check for any signs of overheating or physical damage.
