R10-R2X2-V185 - TE Connectivity

Description: Body Features: Product Weight 40 G | Product Weight 1.41 OZ | Contact Features: Contact Number of Poles 2 | Contact Current Rating (Max) 5 AMP | Contact Arrangement 2 Form C (CO) | Contact Material AgCdO | Contact Current Class 16 AMP | Dimensions: Product Length 24.13 MM | Product Length .95 INCH | Product Width .734 INCH | Product Height 29.97 MM | Width Class (Mechanical) 16 – 20 MM | Height Class (Mechanical) 30 – 40 MM | Length Class (Mechanical) 20 – 25 MM | Product Height 1.17 INCH | Electrical

Download R10-R2X2-V185 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

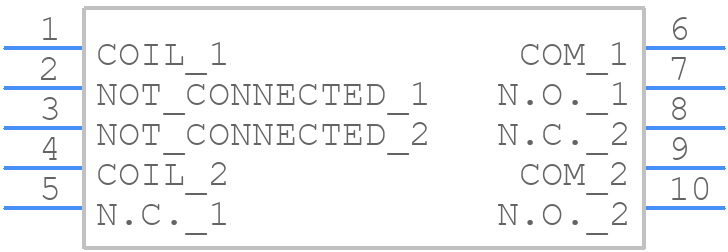

Symbol
R10-R2X2-V185 - TE Connectivity - PCB symbol
click to zoom

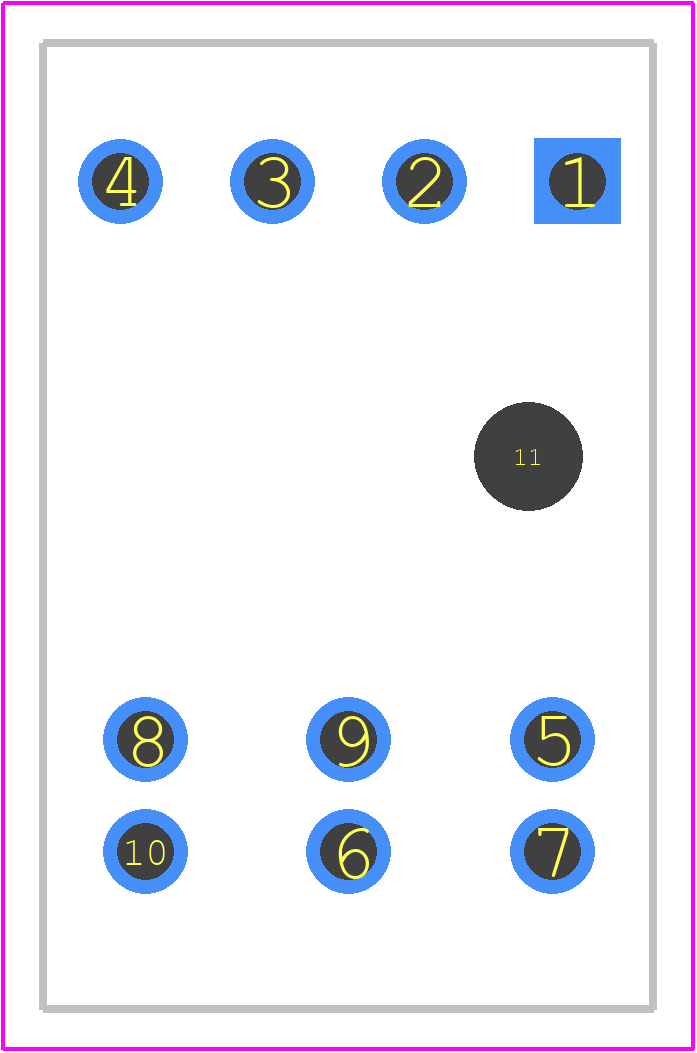

PCB Footprints
R10-R2X2-V185 - TE Connectivity PCB footprint - Other - Other - R10-R2X2-V185
click to zoom
3D Models
R10-R2X2-V185 - TE Connectivity - 3D model - Other - R10-R2X2-V185
click to zoom

R10-R2X2-V185 Details

  • Manufacturer Part Number:

    R10-R2X2-V185

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    18.7 mm

  • Body Height:

    30.2 mm

  • Body Length or Diameter:

    24.1 mm

  • Coil Current(DC)-Max:

    0.042 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    185 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact Voltage(AC)-Max:

    120 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1000 Vrms

  • Dielectric Strength Between Open Contacts:

    500 Vrms

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • Insulation Resistance:

    10000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -55 °C

  • Physical Dimension:

    29.6mm x 18.7mm x 30.2mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    40 g

R10-R2X2-V185 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the R10-R2X2-V185 relay is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in high-vibration environments with proper mounting and installation.
  • The operating temperature range for the R10-R2X2-V185 relay is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the relay's performance at extreme temperatures.
  • The R10-R2X2-V185 relay is not intended for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. It's recommended to use relays specifically designed and certified for safety-critical applications.
  • The R10-R2X2-V185 relay is designed to operate in environments with up to 95% relative humidity, but it's not intended for use in wet or submerged environments. It's recommended to use relays with specific humidity or waterproof ratings for such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R10-R2X2-V185 Overview

Use the download button to access the R10-R2X2-V185 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R10-R, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
