The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermally conductive interface material between the IC and the heat sink.
To prevent ESD damage, handle the device in an ESD-controlled environment, use ESD-protective packaging, and ensure that all equipment and personnel are grounded. Avoid touching the device's pins or exposed internal circuitry.
While the device is designed to operate in a wide range of environmental conditions, it's still important to follow proper humidity protection measures. Consider using a moisture-resistant coating or conformal coating to protect the device from humidity-related damage.
The recommended soldering conditions for this device involve using a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 3 seconds to 5 seconds. Ensure that the device is not exposed to temperatures above 260°C for more than 5 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1154N030B-TR-FE Overview

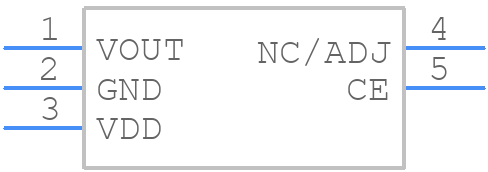

Use the download button to access the R1154N030B-TR-FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1154,
or try a keyword search, such as Linear Regulator ICs
