Part Image

R1283K001B-TR - Ricoh

Description: Buck, Boost Switching Regulator IC Positive and Negative Adjustable -20V 2 Output 1.5A 12-UFDFN Exposed Pad

Download R1283K001B-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

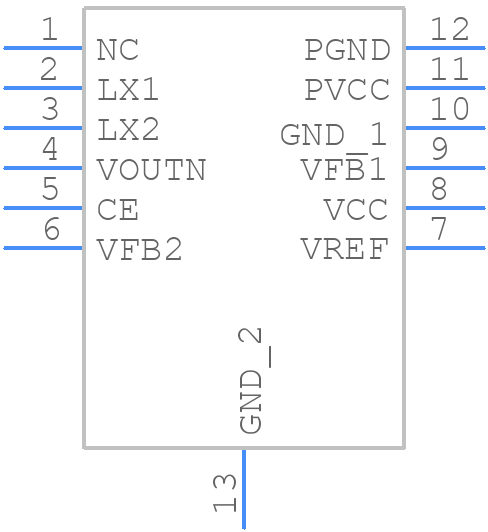

Symbol
R1283K001B-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1283K001B-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3030-12 Package Dimensions.
click to zoom
3D Models
R1283K001B-TR - Ricoh - 3D model - Small Outline No-lead - DFN3030-12 Package Dimensions.
click to zoom

R1283K001B-TR Details

  • Manufacturer Part Number:

    R1283K001B-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

R1283K001B-TR Frequently Asked Questions (FAQs)

  • Ricoh recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable output voltage regulation, it's essential to decouple the input and output pins with suitable capacitors (e.g., 10uF ceramic capacitors). Additionally, a minimum output capacitance of 10uF is recommended.
  • The maximum allowed power dissipation for the R1283K001B-TR is 1.5W. Exceeding this limit may cause the device to overheat, leading to reduced performance or even failure.
  • The R1283K001B-TR is rated for operation up to 105°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments.
  • To protect the device from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a power-on reset circuit to monitor the input voltage and ensure it remains within the specified operating range.
