R1287L008D-TR - Ricoh

Description: Operating Voltage Range··············································2.5 V to 5.5 V [Step-up DC/DC Converter (CH1)]  Selectable Step-up Output Voltage (VOUTP) ······················R1287xxxxy: 4.5 V to 5.8 V (0.1 V Step)  Step-up Output Voltage (Externally adjustable) ·················R1287x001y: 4.5 V to 5.8 V  Maximum Output Current (Dependent on inductance) ·········R1287xxxxB/D/F/H: 200 mA,

Download R1287L008D-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

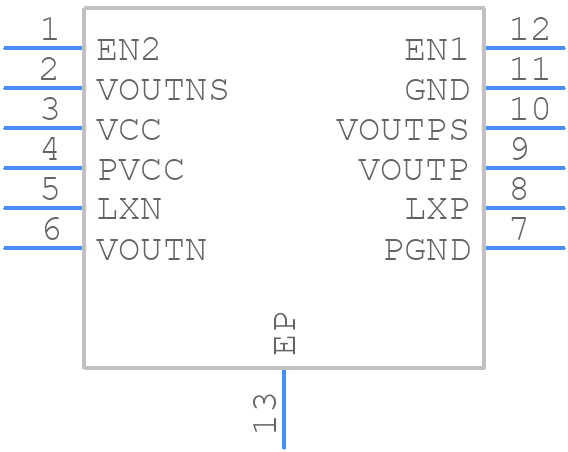

R1287L008D-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1287L008D-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3030-12 Package Dimensions.
click to zoom
3D Models
R1287L008D-TR - Ricoh - 3D model - Small Outline No-lead - DFN3030-12 Package Dimensions.
click to zoom

R1287L008D-TR Details

  • Manufacturer Part Number:

    R1287L008D-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    10

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1287L008D-TR Overview

Use the download button to access the R1287L008D-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1287, or try a keyword search, such as Switching Regulator or Controllers
