R1501S050B-E2-FE - Nisshinbo

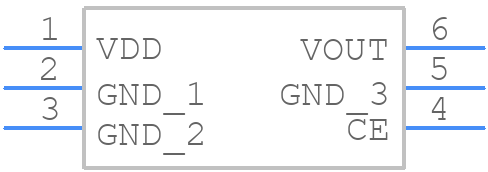

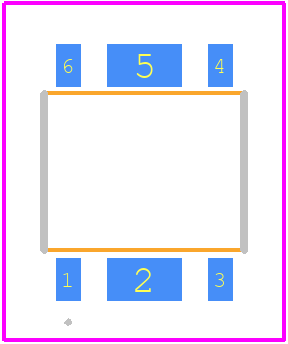

R1501S050B-E2-FE Details

• Manufacturer Part Number:

  R1501S050B-E2-FE

• Part Life Cycle Code:

  Active

• Package Description:

  HSOP-6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  6.2

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.9 V

• Dropout Voltage1-Nom:

  0.575 V

• Input Voltage Absolute-Max:

  36 V

• Input Voltage-Max:

  24 V

• Input Voltage-Min:

  6 V

• JESD-30 Code:

  R-PDSO-G6

• Length:

  5.02 mm

• Line Regulation-Max:

  0.09%

• Load Regulation-Max(%):

  0.3%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  5.175 V

• Output Voltage1-Min:

  4.825 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP6,.25,75

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.85 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.905 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  3.5%

• Width:

  3.9 mm
