Part Image

R1800K010A-TR - Ricoh

Description: Switching Voltage Regulators 144 nA IQ Low Quiescent Current Buck DC/DC Converter for Energy Harvester

Download R1800K010A-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

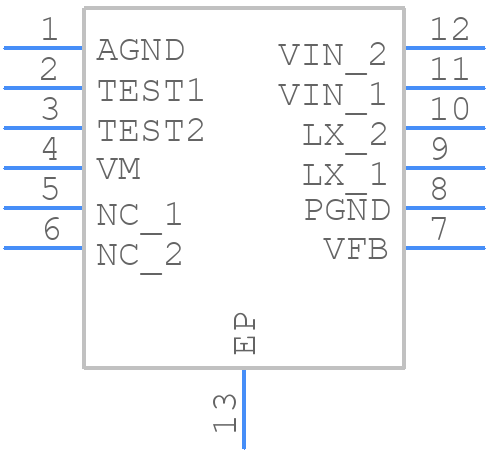

R1800K010A-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1800K010A-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN(PLP)2730
click to zoom
3D Models
R1800K010A-TR - Ricoh - 3D model - Small Outline No-lead - DFN(PLP)2730
click to zoom

R1800K010A-TR Details

  • Manufacturer Part Number:

    R1800K010A-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    10

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1800K010A-TR Overview

Use the download button to access the R1800K010A-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1800, or try a keyword search, such as Switching Regulator or Controllers
