R1810L003A-E2 - Nisshinbo

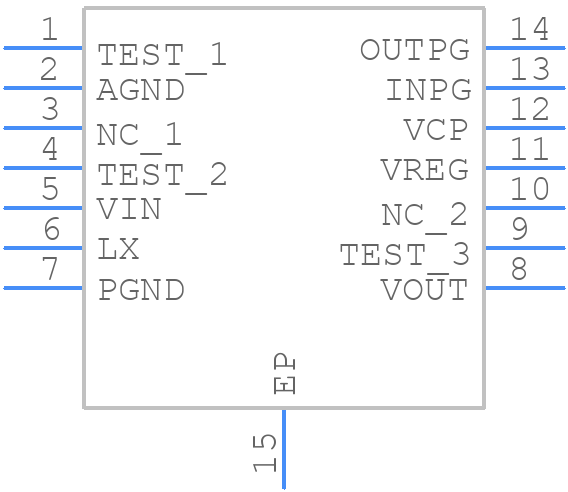

R1810L003A-E2 Details

• Manufacturer Part Number:

  R1810L003A-E2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nisshinbo Micro Devices

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  2.1 V

• Input Voltage-Min:

  0.35 V

• Input Voltage-Nom:

  0.5 V

• JESD-30 Code:

  R-PDSO-N14

• Length:

  3.5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  2.73 V

• Output Voltage-Min:

  2.47 V

• Output Voltage-Nom:

  2.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HUSON

• Package Equivalence Code:

  SOLCC14,.11,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, ULTRA THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.6 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.7 mm
