Part Image

R1EV5801MBSDRDI#B0 - Renesas Electronics

Description: Renesas Electronics’ R1EV5801MB is an electrically erasable and programmable ROM organized as 131072-word × 8-bit. It has realized High-Speed, low power consumption and high reliability by employing advanced MONOS memory technology and CMOS process and circuitry technology. It also has a 128-byte page programming function to make the write operations faster.

Download R1EV5801MBSDRDI#B0 Model

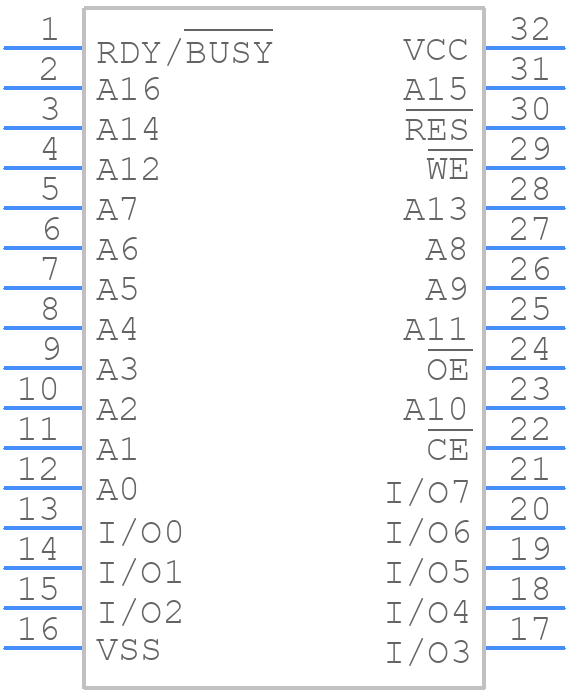

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

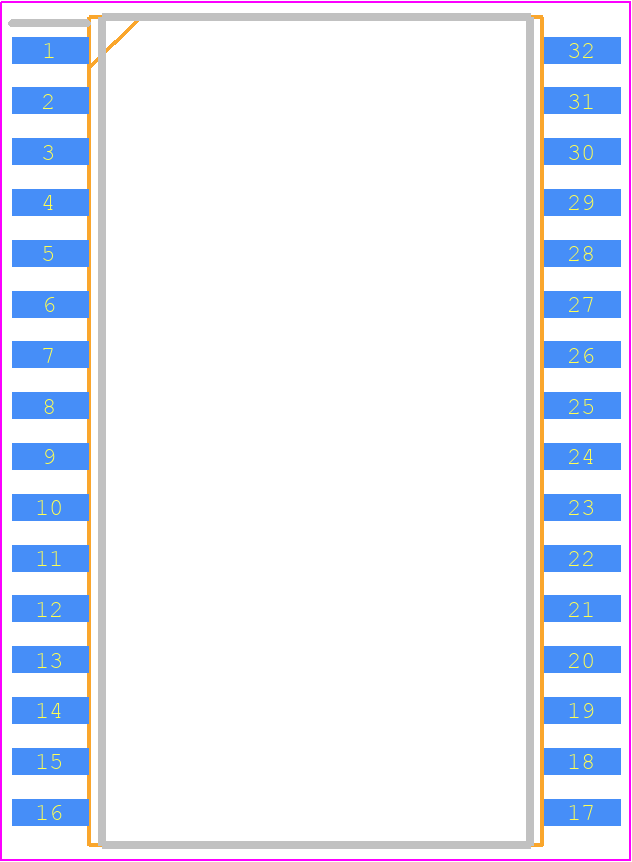

R1EV5801MBSDRDI#B0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - P-SOP32-11.3x20.45-1.27
click to zoom
3D Models
R1EV5801MBSDRDI#B0 - Renesas Electronics  - 3D model - Small Outline Packages - P-SOP32-11.3x20.45-1.27
click to zoom

R1EV5801MBSDRDI#B0 Details

  • Manufacturer Part Number:

    R1EV5801MBSDRDI#B0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    SOP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRSP0032DC

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    250 ns

  • Additional Feature:

    IT ALSO HAVE ACCESS TIME 150 NS OPERATES AT 4.5 TO 5.5 V SUPPLY VOLTAGE

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    20.45 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    3 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11.3 mm

  • Write Cycle Time-Max (tWC):

    10 ms

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1EV5801MBSDRDI#B0 Overview

Use the download button to access the R1EV5801MBSDRDI#B0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1EV5, or try a keyword search, such as EEPROMs
