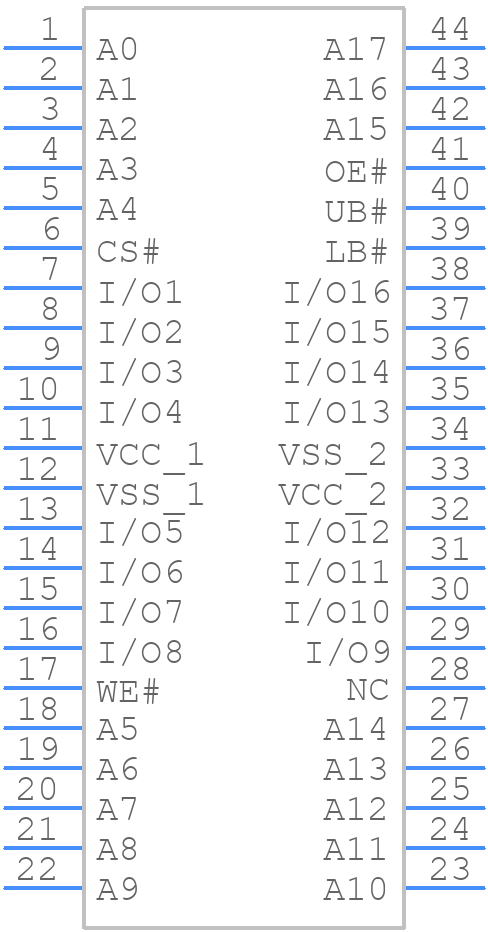

R1RP0416DGE-2PR - Renesas Electronics

R1RP0416DGE-2PR Details

• Manufacturer Part Number:

  R1RP0416DGE-2PR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  SOJ

• Package Description:

  0.400 INCH, PLASTIC, SOJ-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  12 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-J44

• JESD-609 Code:

  e6/e2

• Length:

  28.57 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  44

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  256KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOJ

• Package Equivalence Code:

  SOJ44,.44

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.55 mm

• Standby Current-Max:

  0.005 A

• Standby Voltage-Min:

  4.5 V

• Supply Current-Max:

  0.16 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
