R1RW0416DGE-2LR - Renesas Electronics

Description: Renesas Electronics SRAM, R1RW0416DGE-2LR- 4Mbit

Download R1RW0416DGE-2LR Model

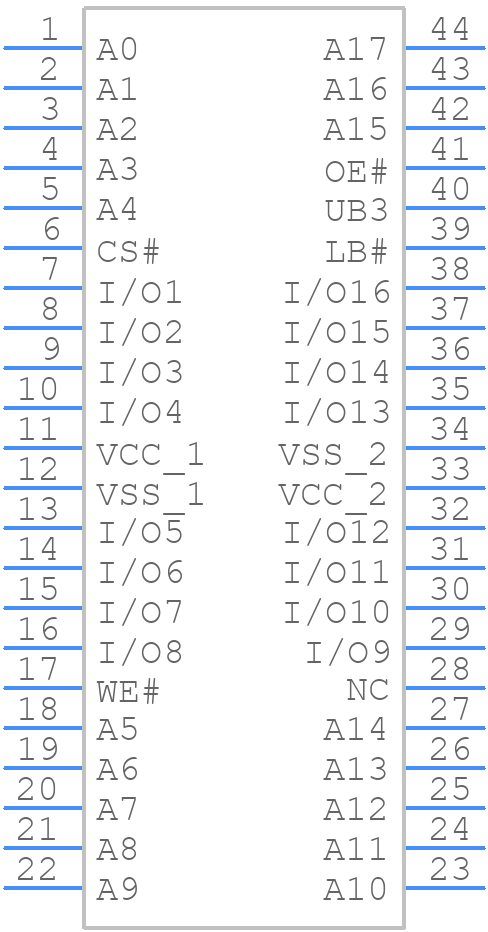

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

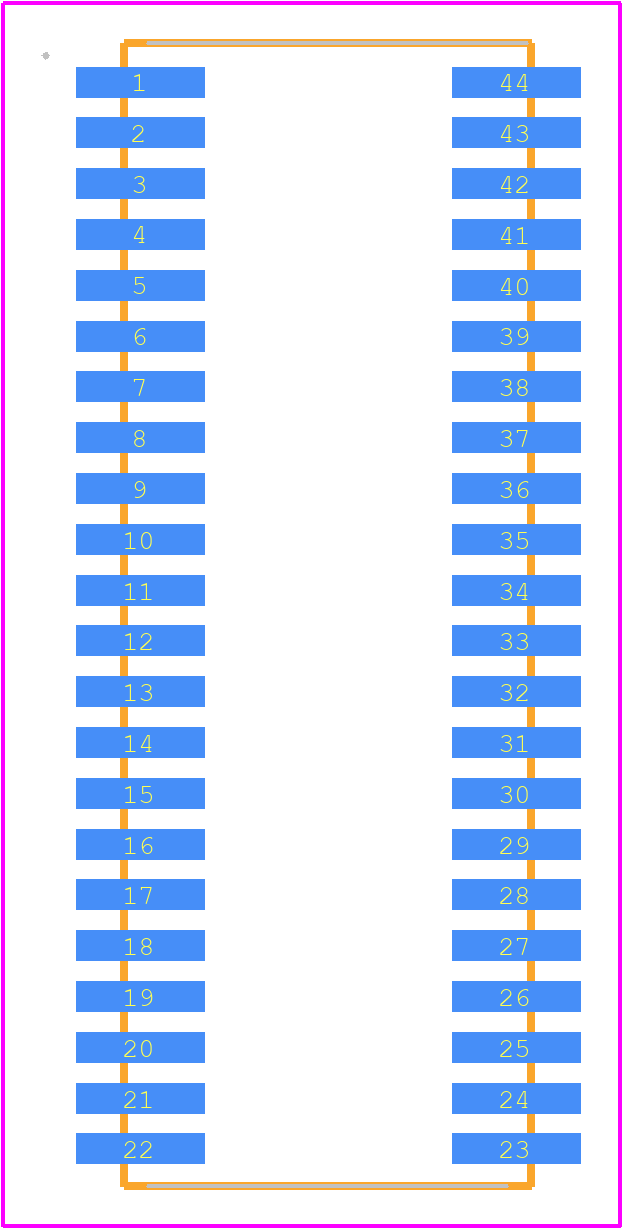

R1RW0416DGE-2LR - Renesas Electronics PCB footprint - Other - Other - R1RW0416DGE-2PR#B0-2
click to zoom

3D Models

R1RW0416DGE-2LR - Renesas Electronics  - 3D model - Other - R1RW0416DGE-2PR#B0-2
click to zoom

R1RW0416DGE-2LR Details

  • Manufacturer Part Number:

    R1RW0416DGE-2LR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOJ

  • Package Description:

    SOJ, SOJ44,.44

  • Pin Count:

    44

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • Risk Rank:

    7.51

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J44

  • Length:

    28.57 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    256KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ44,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    245

  • Power Supplies:

    3.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.55 mm

  • Standby Voltage-Min:

    2 V

  • Subcategory:

    SRAMs

  • Supply Current-Max:

    0.13 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    10.16 mm
