The recommended PCB layout and land pattern can be found in the Nisshinbo Micro Devices' application note AN-XXXX, which provides detailed guidelines for optimal performance and thermal management.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management. Additionally, consider derating the device's power consumption and voltage ratings according to the temperature derating curve provided in the datasheet.
The R2025S-E2-FE has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Avoid touching the device's pins or exposed pads to prevent ESD damage.
The R2025S-E2-FE is a commercial-grade device, but Nisshinbo Micro Devices offers automotive-grade and high-reliability versions of this device, such as the R2025S-E2-FE-A or R2025S-E2-FE-HR, which meet specific industry standards and requirements. Contact Nisshinbo Micro Devices for more information on these variants.
The recommended soldering profile and process can be found in the Nisshinbo Micro Devices' soldering guide, which provides detailed guidelines for reflow soldering, wave soldering, and hand soldering. It's essential to follow these guidelines to ensure reliable solder joints and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R2025S-E2-FE Overview

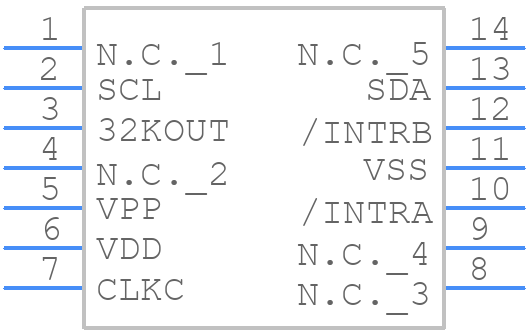

Use the download button to access the R2025S-E2-FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R2025,
or try a keyword search, such as Timers or RTCs
