Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for R25P-2S1G
- Part Number R25P-2S1G
- Manufacturer Moog
- Pin Count 12
- Part Category Undefined or Miscellaneous
- Package Category Other

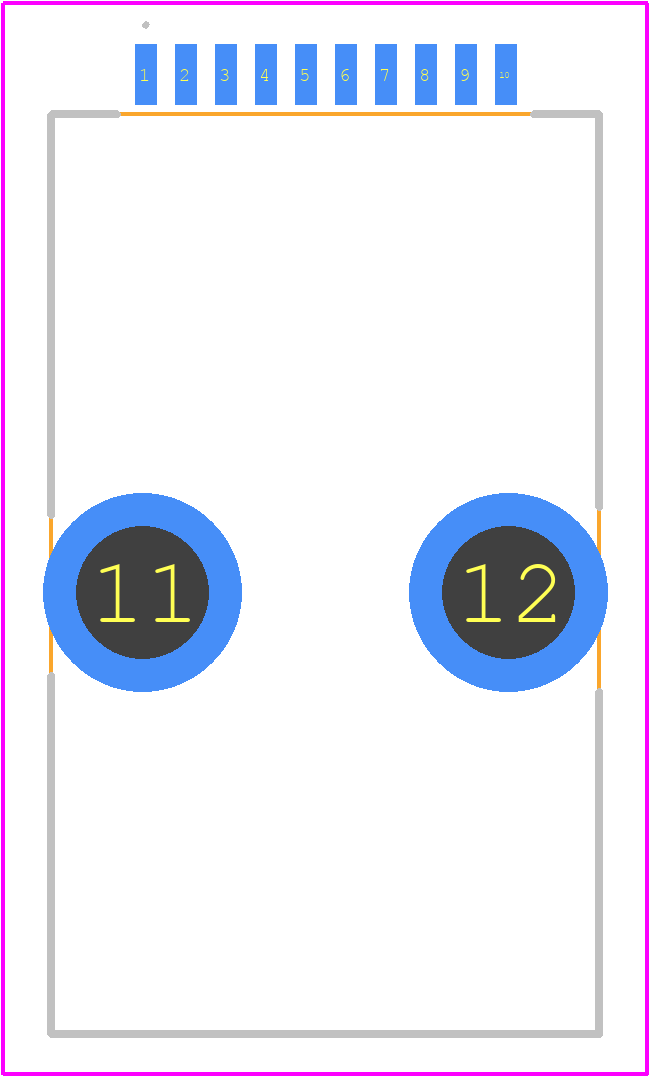

- Footprint Name Other - R25P-2S1G-3
- Released Date Apr 24, 2024
- Last Modified Date Apr 24, 2024 11:41 AM UTC
- Pinout / Pin List Click Here (Member Only)
R25P-2S1G Details
-
Manufacturer Part Number:
R25P-2S1G
-
Part Life Cycle Code:
Active
-
Manufacturer:
Moog Components Group
-
Fiber Optic Device Type:
TRANSCEIVER
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
-
Operating Wavelength-Nom:
850 nm
-
Supply Voltage-Max:
3.465 V
Trust Checks
Community Provided
System Verified
Community Approved
R25P-2S1G Overview

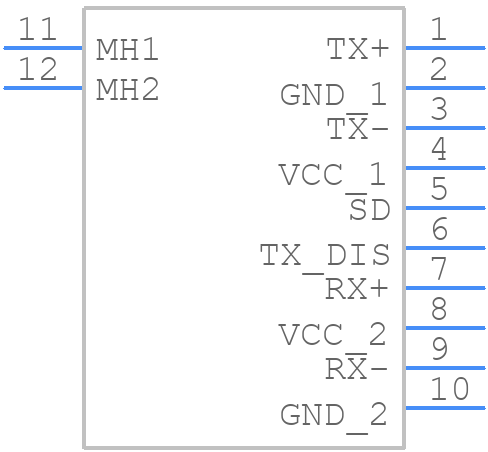

Use the download button to access the R25P-2S1G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like R25P-,
or try a keyword search, such as Fiber Optic Transceivers
