R2A20166SA#W5 - Renesas Electronics

Description: The R2A20166 is an integrated circuit semiconductor of CMOS structure with 6 channels of built in D/A unnecessary and enabling configuration of a system with few component parts. Serial data transfer type input can easily be used through a combination of three lines: DI, CLK, and LD. Outputs incorporate buffer op-amps that have a drive capacity of 1 mA or above for both sink source, and can operate over the entire voltage range from almost ground to Vcc ( 0 to 5V ), making peripheral elements unnecessary an

Download R2A20166SA#W5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

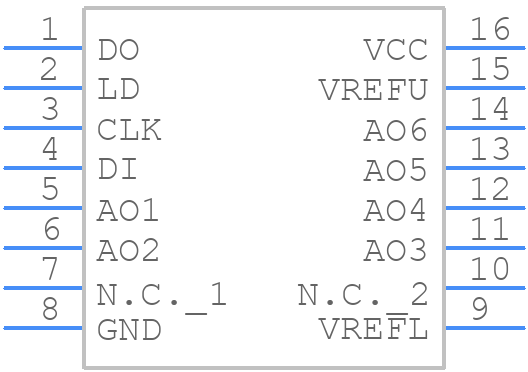

Symbol
R2A20166SA#W5 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R2A20166SA#W5 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - tssop16
click to zoom
3D Models
R2A20166SA#W5 - Renesas Electronics - 3D model - Small Outline Packages - tssop16
click to zoom

R2A20166SA#W5 Details

  • Manufacturer Part Number:

    R2A20166SA#W5

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PTSP0016JB

  • ECCN Code:

    3A991

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.4 V

  • Analog Output Voltage-Min:

    0.1 V

  • Converter Type:

    DAC 8BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    150 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

R2A20166SA#W5 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) for the R2A20166SA. It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The R2A20166SA has a built-in overcurrent protection (OCP) feature. To implement OCP, connect the OCP pin to a resistor and a capacitor to set the OCP threshold and response time. Refer to the datasheet for specific values and equations to calculate the OCP settings.
  • The R2A20166SA has an operating temperature range of -40°C to 105°C. However, the device can be operated up to 125°C with derating. Refer to the datasheet for thermal derating curves and guidelines.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Renesas recommends using a low-ESR capacitor with a value between 10uF to 47uF. Refer to the datasheet for specific guidelines and equations to calculate the output capacitor value.
  • Renesas recommends using a ceramic capacitor with a value between 1uF to 10uF as the input capacitor. The capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
