Description:The R2A20168 is an integrated circuit semiconductor of CMOS structure with 8 channels of built in D/A unnecessary and enabling configuration of a system with few component parts. Serial data transfer type input can easily be used through a combination of three lines: DI, CLK, and LD. Outputs incorporate buffer op-amps that have a drive capacity of 1 mA or above for both sink source, and can operate over the entire voltage range from almost ground to Vcc ( 0 to 5V ), making peripheral elements unnecessary an
CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Settling Time-Max:
150 µs
Supply Current-Max:
1.2 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm
R2A20168NP#W5 Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide for the R2A20168NP#W5, which includes guidelines for component placement, routing, and thermal management. It's essential to follow this guide to ensure optimal performance, low noise, and high reliability.
The R2A20168NP#W5 has a thermal pad on the bottom of the package, which needs to be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
The recommended power-up sequence for R2A20168NP#W5 is to first apply the analog power supply (AVCC) and then the digital power supply (DVCC). This ensures that the analog circuits are powered up before the digital circuits, which helps to prevent latch-up and ensures proper device operation.
The R2A20168NP#W5 has several power-saving modes, including a low-power mode (LPM) and a shutdown mode (SDM). To configure the device for low-power operation, set the appropriate registers and pins according to the datasheet. Additionally, consider using a power management IC (PMIC) to optimize power consumption and reduce standby current.
The R2A20168NP#W5 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials to prevent damage during shipping and storage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R2A20168NP#W5 Overview

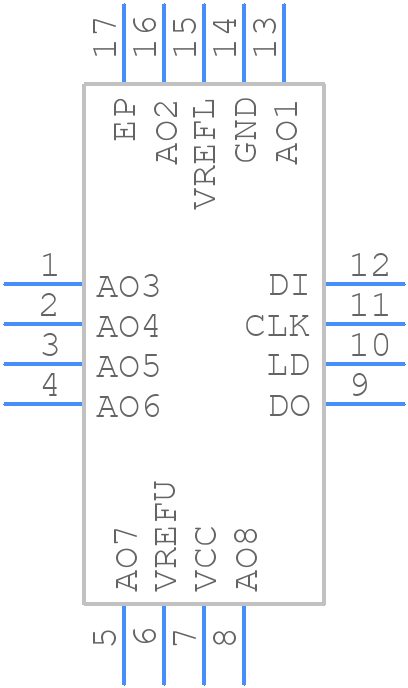

Use the download button to access the R2A20168NP#W5 schematic symbol, PCB footprint, and 3D model.
