The recommended PCB layout involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering or shielding on the input and output lines. Additionally, follow the recommended PCB layout and grounding practices.
The maximum allowed voltage stress on the input and output pins is 50V, with a maximum voltage rating of 40V for the input and 30V for the output. Exceeding these ratings may damage the device.
Implement external OVP and UVP circuits using zener diodes, resistors, and capacitors to protect the device from voltage transients and faults. The recommended OVP threshold is 42V, and the UVP threshold is 10V.
Choose input and output capacitors with low ESR and high ripple current ratings. Place them close to the device, with the input capacitor connected between the input pin and ground, and the output capacitor connected between the output pin and ground.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R3910-CFAB-E1T Overview

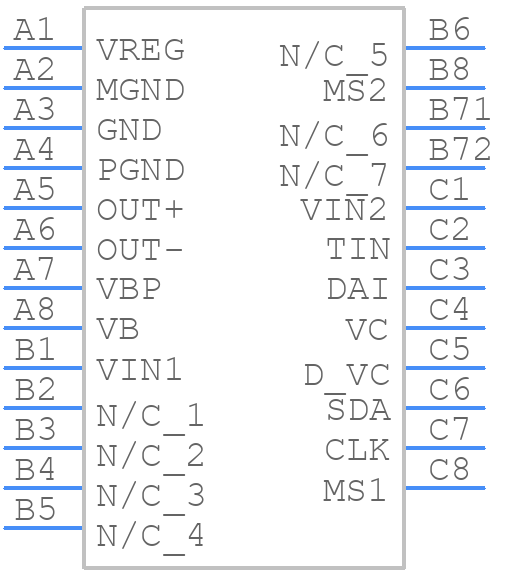

Use the download button to access the R3910-CFAB-E1T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R3910,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
