R4F2164VTE34V - Renesas Electronics

Description: The H8S/2164 Group is supported only for customers who have already adopted these products. The RX651, RX210 Groups are recommended for new designs.

Download R4F2164VTE34V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R4F2164VTE34V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

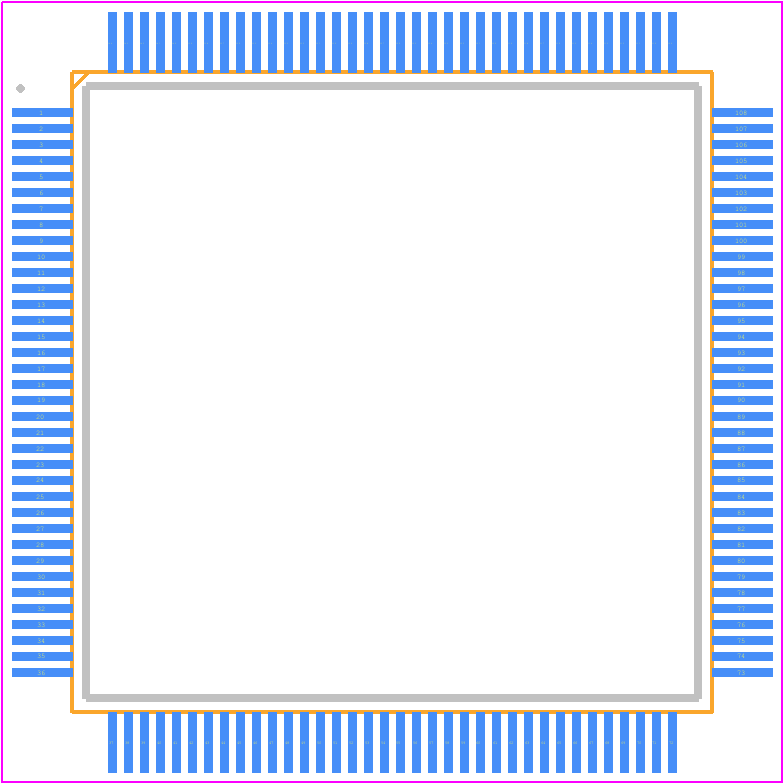

R4F2164VTE34V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PTQPP0144LC-A
click to zoom
3D Models
R4F2164VTE34V - Renesas Electronics - 3D model - Quad Flat Packages - PTQPP0144LC-A
click to zoom

R4F2164VTE34V Details

  • Manufacturer Part Number:

    R4F2164VTE34V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TFQFP

  • Pin Count:

    144

  • Manufacturer Package Code:

    PTQP0144LC

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R4F2164VTE34V Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the R4F2164VTE34V is 32.768 kHz, which is a standard frequency for real-time clock applications.
  • To configure the flash memory for optimal performance and endurance, it is recommended to use the flash accelerator, enable the cache, and follow the guidelines for flash programming and erasing provided in the datasheet and application notes.
  • The maximum operating temperature range for the R4F2164VTE34V is -40°C to +85°C, making it suitable for industrial and automotive applications.
  • To implement secure boot and secure firmware updates, use the built-in cryptographic engines, such as AES and SHA, and follow the guidelines for secure boot and firmware update protocols provided in the datasheet and application notes.
  • The maximum current consumption of the R4F2164VTE34V in active mode is approximately 50 mA, depending on the clock frequency, voltage, and peripheral usage.
