R4F2472VBR34DV - Renesas Electronics

Description: The H8S/2472, 2463, 2462 Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download R4F2472VBR34DV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

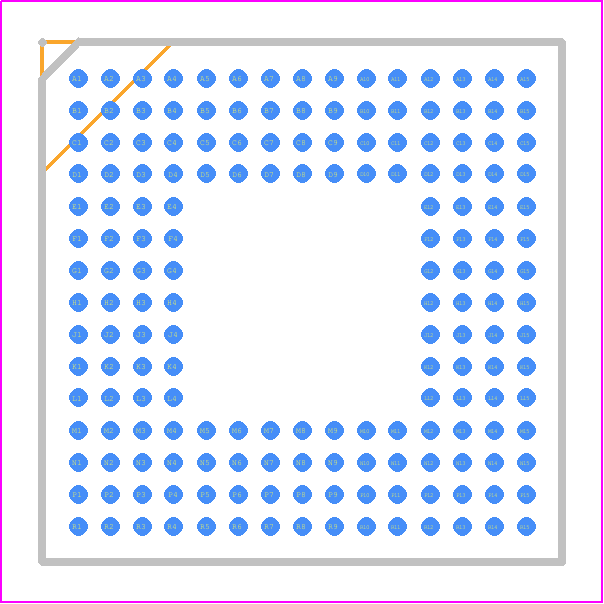

R4F2472VBR34DV - Renesas Electronics PCB footprint - BGA - BGA - PLBG0176GA-A
click to zoom
3D Models
R4F2472VBR34DV - Renesas Electronics  - 3D model - BGA - PLBG0176GA-A
click to zoom

R4F2472VBR34DV Details

  • Manufacturer Part Number:

    R4F2472VBR34DV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LFBGA

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLBG0176GA

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    16

  • Clock Frequency-Max:

    34 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PBGA-N176

  • Length:

    13 mm

  • Number of I/O Lines:

    120

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    34 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R4F2472VBR34DV Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the R4F2472VBR34DV is 240 MHz.
  • The R4F2472VBR34DV has 256 KB of flash memory.
  • The maximum ambient temperature range for the R4F2472VBR34DV is -40°C to 125°C.
  • Yes, the R4F2472VBR34DV has a 12-bit analog-to-digital converter (ADC) with 16 channels.
  • The power consumption of the R4F2472VBR34DV in sleep mode is approximately 1.5 μA.
