Ricoh provides a recommended PCB layout in their application note (AN145) for the R5432 series, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Ricoh recommends using a capacitor with an ESR (Equivalent Series Resistance) of 1 Ω or less, and a capacitance value of 10 μF or more. Additionally, the output capacitor should be placed as close as possible to the VOUT pin to minimize parasitic inductance.
According to Ricoh's datasheet, the maximum allowed input voltage ripple is 1 Vp-p (peak-to-peak) for frequencies up to 100 kHz. Exceeding this limit may affect the regulator's performance and stability.
The R5432V405BA-E2-FE has an operating temperature range of -40°C to +105°C. However, the maximum junction temperature (TJ) is 125°C. Ensure that the device is properly cooled and the thermal design is adequate to prevent overheating, especially in high-temperature environments.
Ricoh provides a power dissipation calculation formula in their datasheet. The formula takes into account the input voltage, output voltage, output current, and package thermal resistance. Use this formula to calculate the power dissipation, and then select a suitable heat sink based on the calculated value and the desired junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5432V405BA-E2-FE Overview

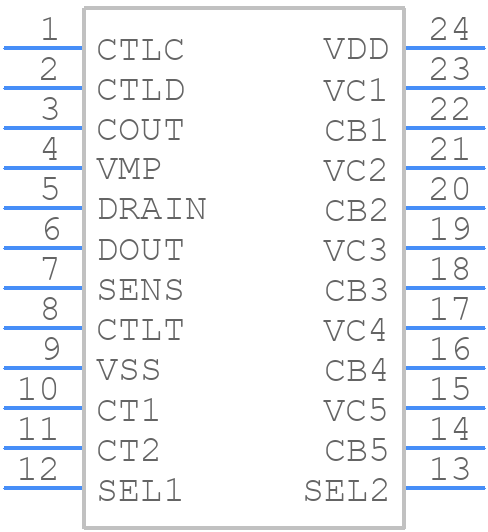

Use the download button to access the R5432V405BA-E2-FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5432,
or try a keyword search, such as Power Management Circuits
