R5436T503BA-E2-FF - Ricoh

Description: Overcharge detection voltage (VDET1n(1)) 3.6 V to 4.5 V (in 5 mV steps)

Download R5436T503BA-E2-FF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

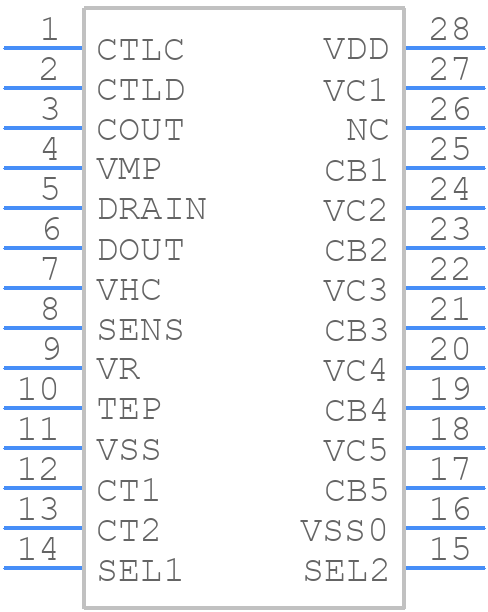

R5436T503BA-E2-FF - Ricoh - PCB symbol
click to zoom
PCB Footprints
R5436T503BA-E2-FF - Ricoh PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-28
click to zoom
3D Models
R5436T503BA-E2-FF - Ricoh - 3D model - Small Outline Packages - TSSOP-28
click to zoom

R5436T503BA-E2-FF Details

  • Manufacturer Part Number:

    R5436T503BA-E2-FF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TSSOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-05-29

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.25V

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    4.4 mm

R5436T503BA-E2-FF Frequently Asked Questions (FAQs)

  • The thermal resistance (junction-to-ambient) of the R5436T503BA-E2-FF is typically around 30°C/W, but it's recommended to check the specific datasheet or consult with Ricoh support for the most up-to-date information.
  • The R5436T503BA-E2-FF has an operating temperature range of -40°C to 105°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
  • To ensure output voltage stability, it's crucial to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor (e.g., 10uF or larger) and a stable input voltage.
  • The R5436T503BA-E2-FF has a maximum input voltage rating of 18V, but it's recommended to operate within the specified input voltage range (5.5V to 16V) for optimal performance and reliability.
  • Yes, the R5436T503BA-E2-FF is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA (typical) and low dropout voltage (VDO) of 0.25V (typical). However, it's essential to consider the battery life and overall system power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5436T503BA-E2-FF Overview

Use the download button to access the R5436T503BA-E2-FF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5436, or try a keyword search, such as Power Management Circuits
