R5650T401AA-E2-FE - Ricoh

Description: Battery Management 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection

Download R5650T401AA-E2-FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

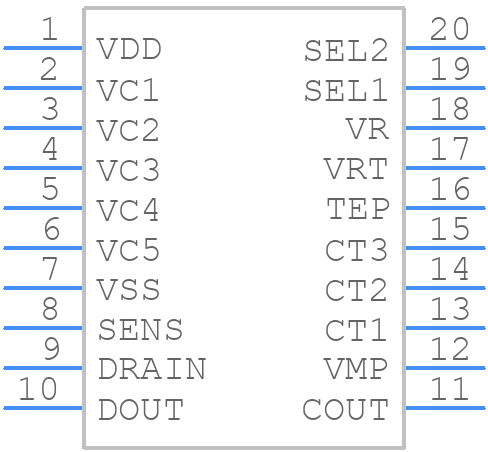

R5650T401AA-E2-FE - Ricoh - PCB symbol
click to zoom
PCB Footprints
R5650T401AA-E2-FE - Ricoh PCB footprint - Small Outline Packages - Small Outline Packages - tssop 20
click to zoom
3D Models
R5650T401AA-E2-FE - Ricoh - 3D model - Small Outline Packages - tssop 20
click to zoom

R5650T401AA-E2-FE Details

  • Manufacturer Part Number:

    R5650T401AA-E2-FE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-03

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.025 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.25V

  • Width:

    4.4 mm

R5650T401AA-E2-FE Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the R5650T401AA-E2-FE is -40°C to 105°C.
  • To ensure stable output voltage, it's recommended to use a 10uF or larger ceramic capacitor for the output capacitor (COUT) and a 1uF or larger ceramic capacitor for the input capacitor (CIN).
  • The recommended PCB layout for the R5650T401AA-E2-FE involves placing the input capacitor (CIN) close to the VIN pin, and the output capacitor (COUT) close to the VOUT pin. Additionally, it's recommended to use a solid ground plane and to minimize the distance between the device and the capacitors.
  • The R5650T401AA-E2-FE is designed for low-current applications up to 500mA. For high-current applications, it's recommended to use a different voltage regulator or to consult with Ricoh's application engineers for guidance.
  • The power dissipation of the R5650T401AA-E2-FE can be calculated using the formula: Pd = (VIN - VOUT) x IOUT, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current.
