R5F1007DGNA#40 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F1007DGNA#40 Model

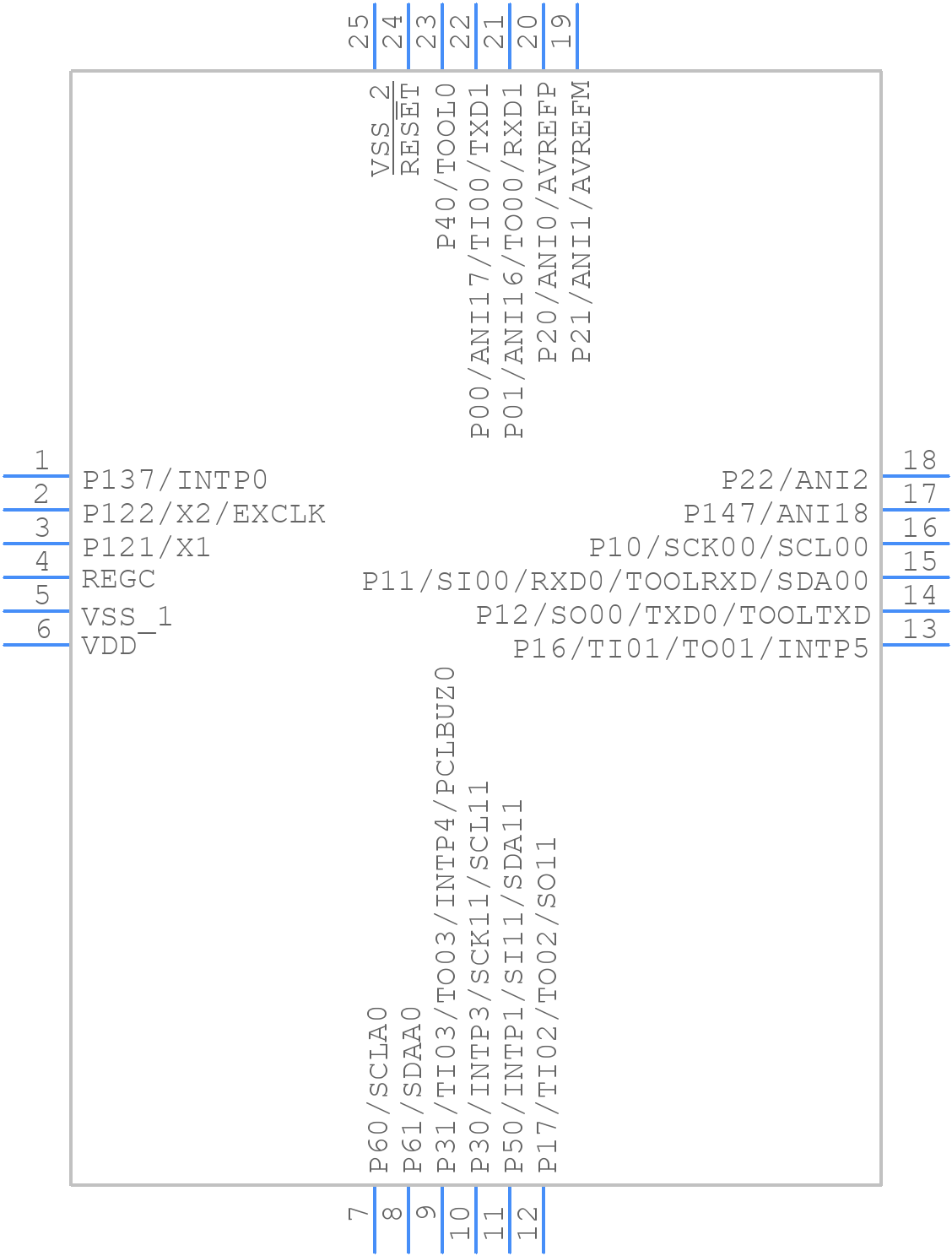

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F1007DGNA#40 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0024KF-A
click to zoom
3D Models
R5F1007DGNA#40 - Renesas Electronics  - 3D model - Quad Flat No-Lead - PWQN0024KF-A
click to zoom

R5F1007DGNA#40 Details

  • Manufacturer Part Number:

    R5F1007DGNA#40

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    HWQFN

  • Package Description:

    HWQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    PWQN0024KF

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 16MHZ @2.4V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    20

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    24

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    3072

  • ROM (words):

    49152

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F1007DGNA#40 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CKR). The CKR register allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating temperature range for the R5F1007DGNA#40 is -40°C to 125°C. However, it's recommended to operate the device within the range of -20°C to 85°C for optimal performance and reliability.
  • The R5F1007DGNA#40 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The watchdog timer can be used to reset the device in case of a software or hardware failure.
  • The recommended layout and routing for the R5F1007DGNA#40 involves keeping the power and ground pins separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also recommended to use a decoupling capacitor between VCC and VSS.
