R5F100ACGSP#30 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F100ACGSP#30 Model

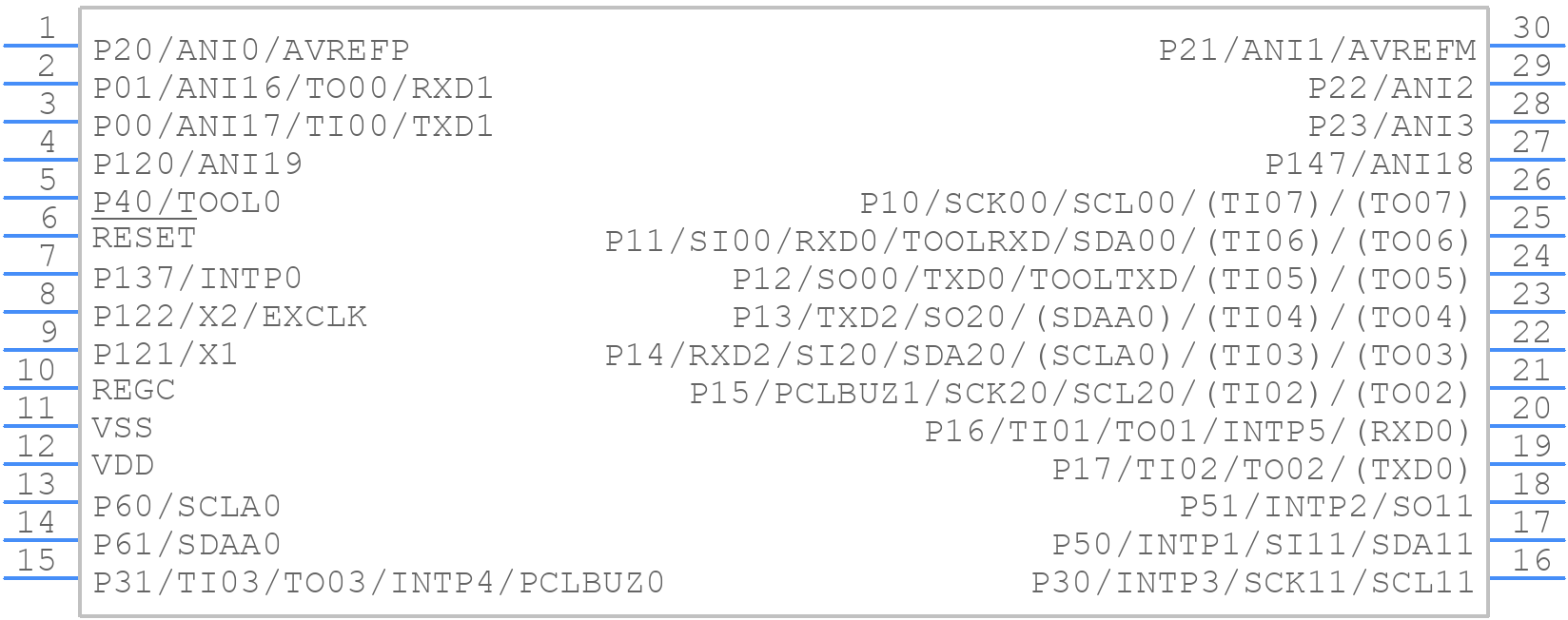

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F100ACGSP#30 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B-2021
click to zoom
3D Models
R5F100ACGSP#30 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0030JB-B-2021
click to zoom

R5F100ACGSP#30 Details

  • Manufacturer Part Number:

    R5F100ACGSP#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    30

  • Number of Timers:

    9

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
