R5F100AEASP#50 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F100AEASP#50 Model

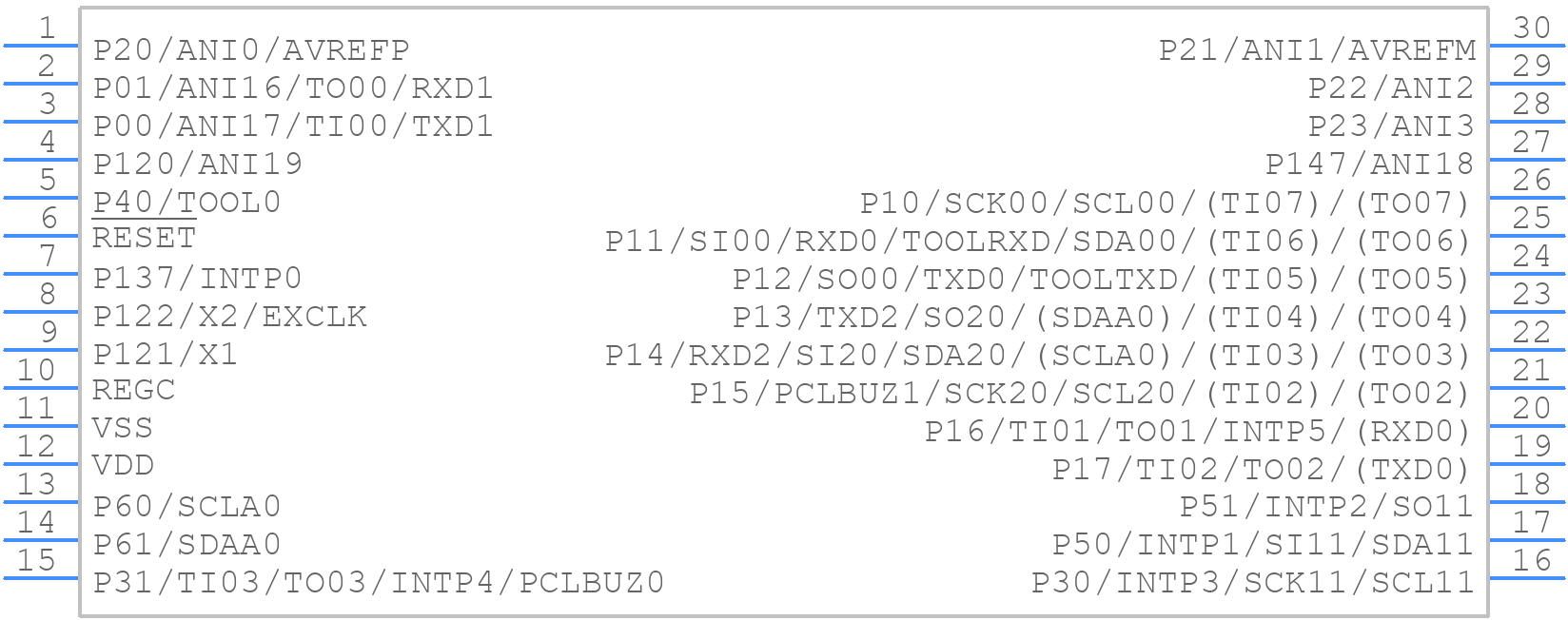

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F100AEASP#50 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - R5F100ACGSP#V0-1
click to zoom
3D Models
R5F100AEASP#50 - Renesas Electronics  - 3D model - Small Outline Packages - R5F100ACGSP#V0-1
click to zoom

R5F100AEASP#50 Details

  • Manufacturer Part Number:

    R5F100AEASP#50

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    9

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    30

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • RAM (bytes):

    4096

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F100AEASP#50 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VCCPLL, and then the clock signal. This ensures proper initialization of the internal PLL and clock domains.
  • The clock settings can be configured using the Clock Control Register (CKCR) and the PLL Control Register (PLLCR). Refer to the user manual for detailed information on clock configuration and settings.
  • The maximum operating frequency of the R5F100AEASP#50 is 32 MHz, but it can be overclocked up to 40 MHz with careful consideration of power consumption and thermal management.
  • The R5F100AEASP#50 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the device in case of a software or hardware fault.
  • The NMI (Non-Maskable Interrupt) pin is used to generate a non-maskable interrupt that can be used to handle critical system events, such as a watchdog timer timeout or a power failure.
