R5F100AEASP#V0 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F100AEASP#V0 Model

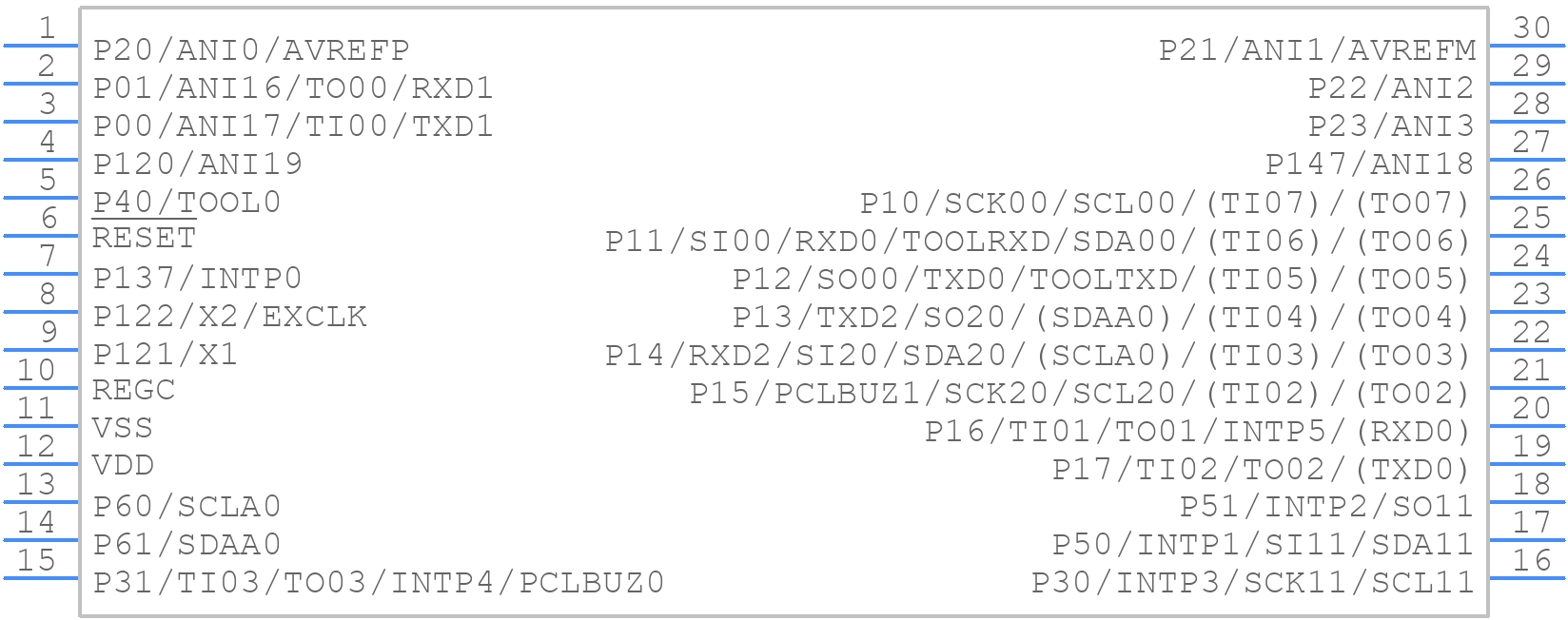

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F100AEASP#V0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - LSSOP
click to zoom
3D Models
R5F100AEASP#V0 - Renesas Electronics  - 3D model - Small Outline Packages - LSSOP
click to zoom

R5F100AEASP#V0 Details

  • Manufacturer Part Number:

    R5F100AEASP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    30

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • RAM (bytes):

    4096

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F100AEASP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the clock signal. This ensures proper initialization of the internal voltage regulator and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CKCR). The register allows selection of the clock source, clock frequency, and clock mode. Refer to the user manual for detailed information on clock configuration.
  • The maximum operating frequency of the R5F100AEASP#V0 is 32 MHz. However, the actual operating frequency may vary depending on the clock source and configuration.
  • The ADC on the R5F100AEASP#V0 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). The ADC can be triggered by a software trigger or an external trigger. Refer to the user manual for detailed information on ADC configuration and operation.
  • The VCAP pin is used to connect a capacitor for the internal voltage regulator. The capacitor value should be between 1.0 μF and 10 μF. The VCAP pin should be connected to a capacitor to ensure stable operation of the internal voltage regulator.
