R5F100LEAFA#X0 Details

• Manufacturer Part Number:

  R5F100LEAFA#X0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

• Package Description:

  LQFP-64

• Pin Count:

  64

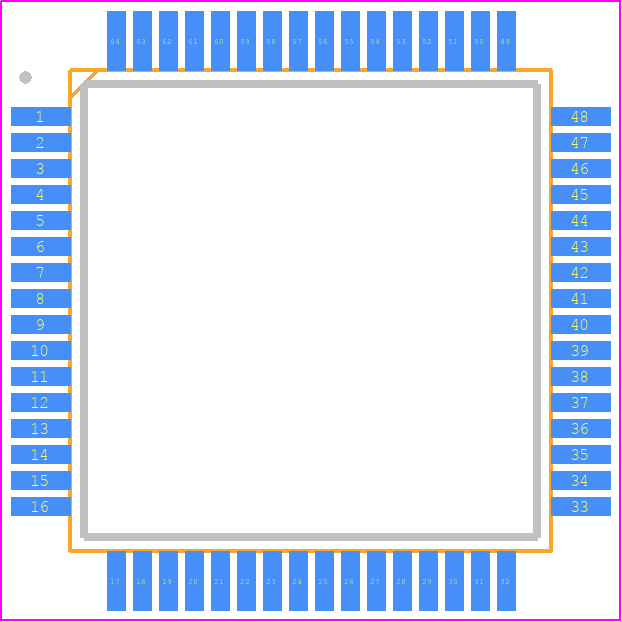

• Manufacturer Package Code:

  PLQP0064JA

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 16MHZ @2.4V MIN SUPPLY

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  RL78

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G64

• Length:

  12 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  2

• Number of External Interrupts:

  13

• Number of I/O Lines:

  58

• Number of Serial I/Os:

  3

• Number of Terminals:

  64

• Number of Timers:

  9

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP64,.55SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• RAM (bytes):

  4096

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  32 MHz

• Supply Current-Max:

  7 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
