R5F100MLAFB#V0 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F100MLAFB#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

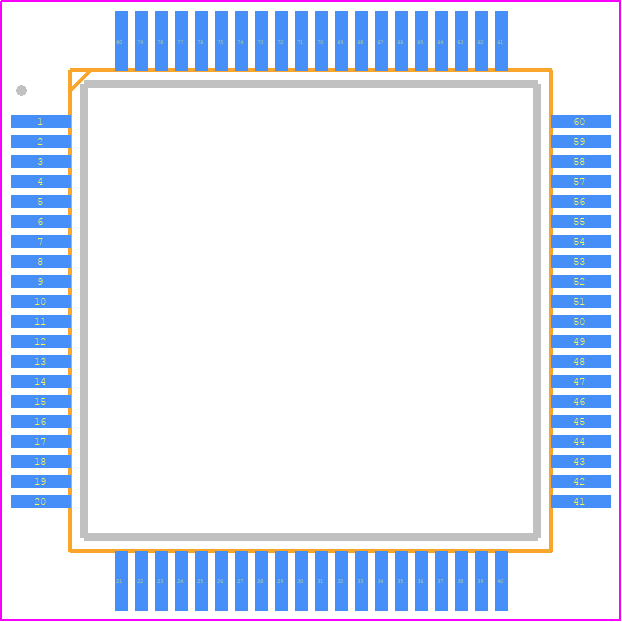

R5F100MLAFB#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080KE-A
click to zoom
3D Models
R5F100MLAFB#V0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0080KE-A
click to zoom

R5F100MLAFB#V0 Details

  • Manufacturer Part Number:

    R5F100MLAFB#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    LFQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080KE

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    13

  • Number of I/O Lines:

    74

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    80

  • Number of Timers:

    13

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP80,.55SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    32768

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    9.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F100MLAFB#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). The CCR sets the clock frequency, while the CSSR selects the clock source (e.g., internal oscillator, external crystal, or external clock).
  • The maximum operating temperature range for the R5F100MLAFB#V0 is -40°C to +85°C. However, it's recommended to operate within the recommended temperature range of -20°C to +70°C for optimal performance and reliability.
  • The R5F100MLAFB#V0 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The WDT can be set to reset the device or generate an interrupt upon timeout.
  • The VCCIO pin is the power supply pin for the I/O circuits. It should be connected to a 3.3V power supply, and it's recommended to use a decoupling capacitor to filter out noise and ensure stable operation.
