R5F101MKAFB#V0 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F101MKAFB#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

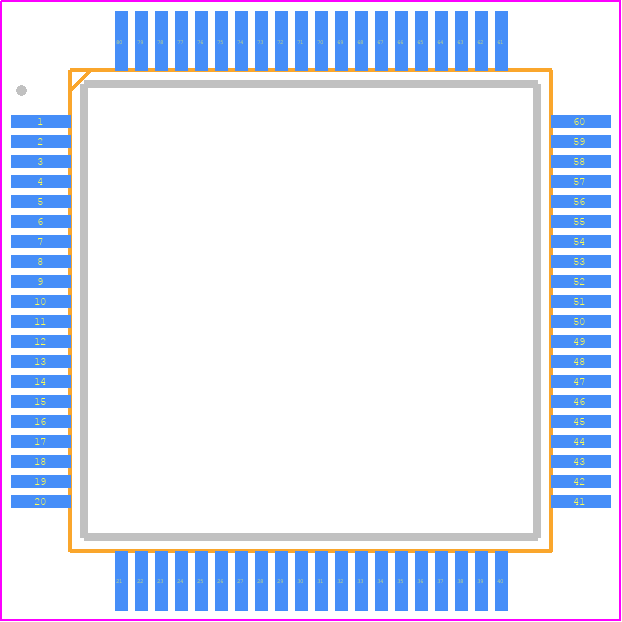

R5F101MKAFB#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080KE-A
click to zoom
3D Models
R5F101MKAFB#V0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0080KE-A
click to zoom

R5F101MKAFB#V0 Details

  • Manufacturer Part Number:

    R5F101MKAFB#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    LFQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080KE

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 16MHZ @2.4V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    13

  • Number of I/O Lines:

    74

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    80

  • Number of Timers:

    13

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP80,.55SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    24576

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    9.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F101MKAFB#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock source can be configured using the Clock Control Register (CCR). The CCR register allows you to select between the internal high-speed oscillator, external clock, or low-power oscillator. You can also configure the clock frequency and divider settings using this register.
  • The maximum operating frequency of the R5F101MKAFB#V0 is 32 MHz. However, the actual operating frequency may be limited by the clock source and the system clock divider settings.
  • The watchdog timer can be enabled and configured using the Watchdog Timer Control Register (WTCR). You can set the watchdog timer period, enable or disable the timer, and configure the timer mode using this register. The watchdog timer can be used to detect and recover from system faults or hangs.
  • The NMI (Non-Maskable Interrupt) pin is used to generate a non-maskable interrupt request to the CPU. This pin can be used to connect an external interrupt source, such as a reset button or a watchdog timer output, to generate a system reset or interrupt request.
