R5F104ACASP#V0 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104ACASP#V0 Model

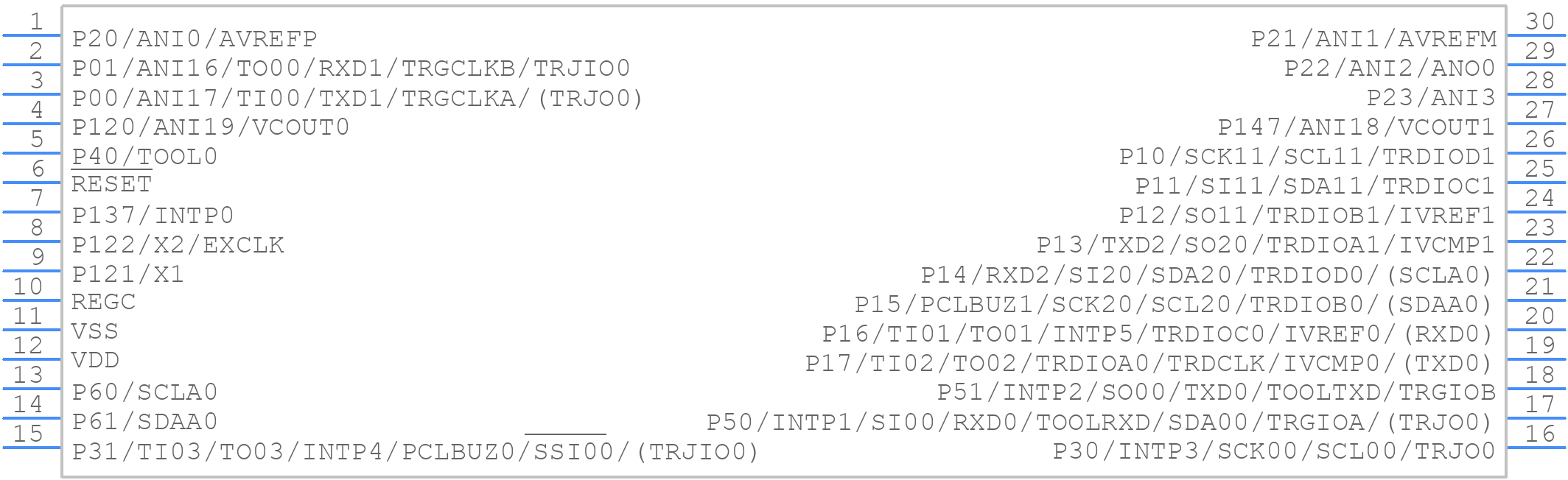

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F104ACASP#V0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B
click to zoom
3D Models
R5F104ACASP#V0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0030JB-B
click to zoom

R5F104ACASP#V0 Details

  • Manufacturer Part Number:

    R5F104ACASP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    30

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    4096

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F104ACASP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the clock signal. This ensures proper initialization of the internal voltage regulator and prevents latch-up.
  • During reset, the JTAG interface should be tri-stated to prevent interference with the reset signal. This can be achieved by setting the JTAG pins as inputs and disabling the JTAG clock.
  • The maximum frequency for the external clock input is 20 MHz. Exceeding this frequency may cause instability or malfunction of the microcontroller.
  • To configure the WDT for optimal performance, set the WDT clock source to the internal clock, and adjust the timeout period according to the application's requirements. Also, ensure that the WDT is reset periodically to prevent timeout.
  • The VCAP pin is used to connect an external capacitor for the internal voltage regulator. It should be connected to a 1.0 μF to 10 μF ceramic capacitor to ensure stable operation of the microcontroller.
