R5F104BAANA#U0 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104BAANA#U0 Model
Schematic

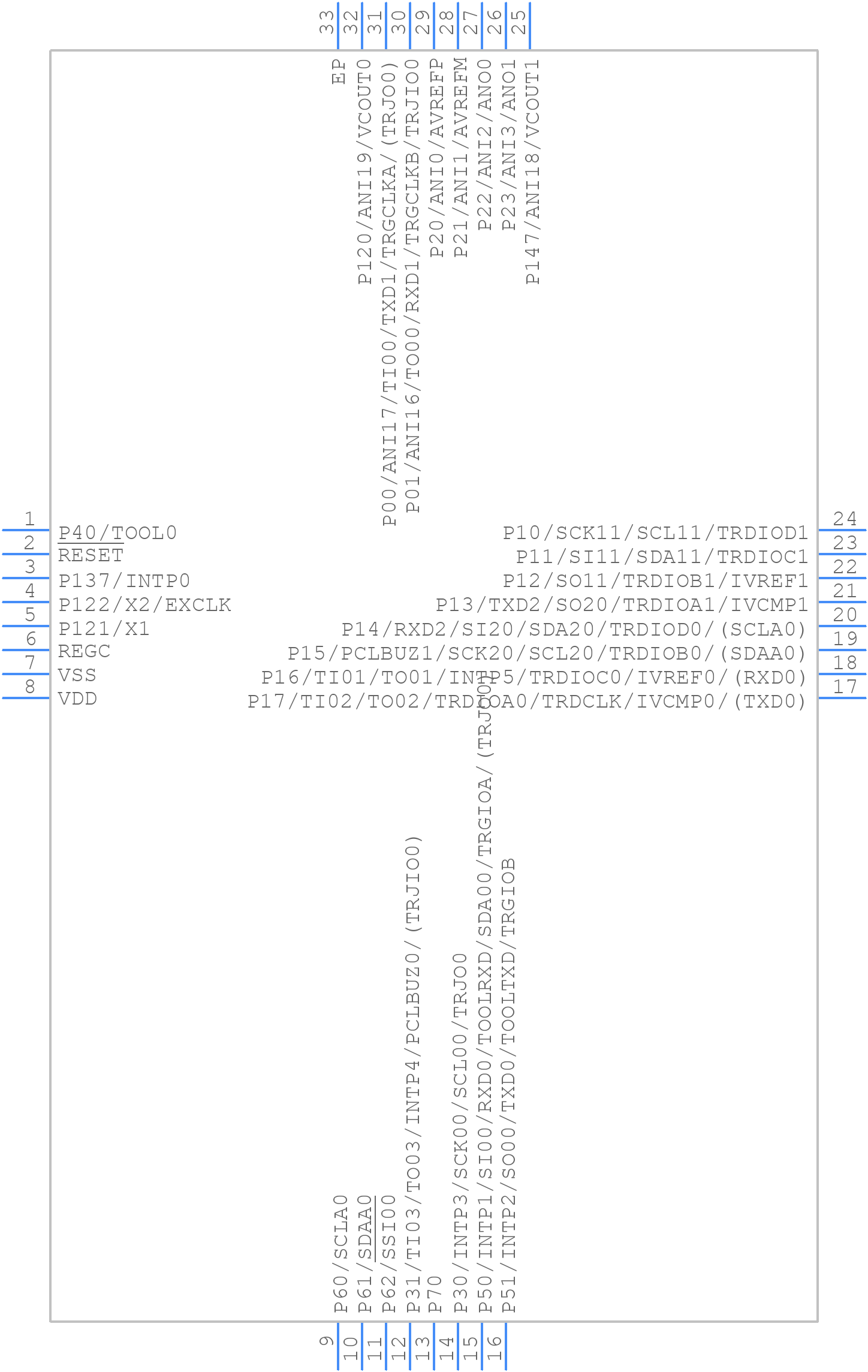

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F104BAANA#U0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0032KB-A
click to zoom
3D Models
R5F104BAANA#U0 - Renesas Electronics  - 3D model - Quad Flat No-Lead - PWQN0032KB-A
click to zoom

R5F104BAANA#U0 Details

  • Manufacturer Part Number:

    R5F104BAANA#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HWQFN

  • Package Description:

    HWQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PWQN0032KB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    28

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    32

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2560

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
