R5F104BCAFP#V0 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104BCAFP#V0 Model
Schematic
symbols

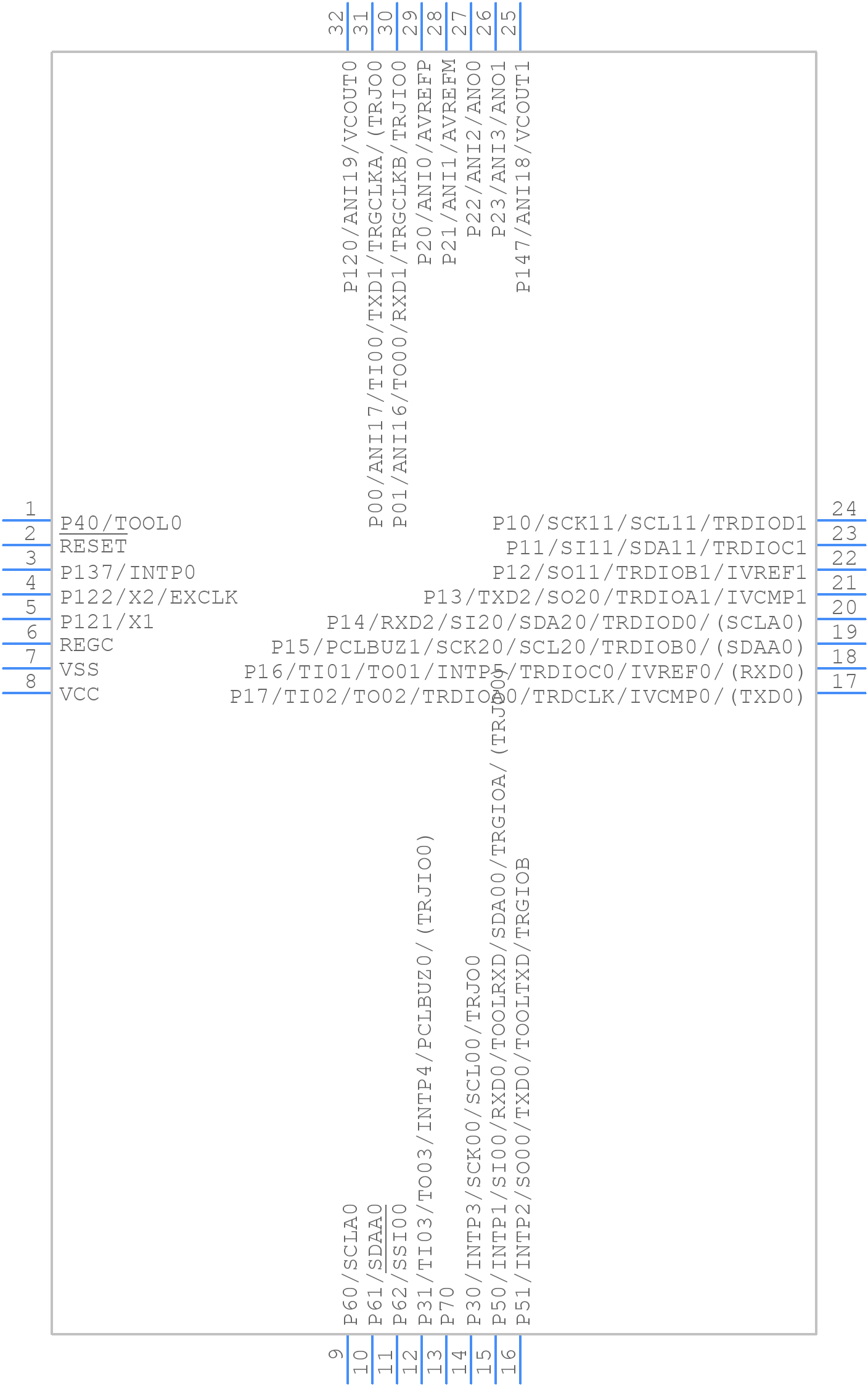

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F104BCAFP#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom
3D Models
R5F104BCAFP#V0 - Renesas Electronics  - 3D model - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom

R5F104BCAFP#V0 Details

  • Manufacturer Part Number:

    R5F104BCAFP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLQP0032GB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    28

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    32

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    4096

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F104BCAFP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the clock signal. This ensures proper initialization of the internal voltage regulator and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CKCR). The register allows selection of the clock source, clock frequency, and clock mode. Refer to the user manual for detailed information on clock configuration.
  • The NMI (Non-Maskable Interrupt) pin is used to generate a non-maskable interrupt request to the CPU. It is typically used for critical events that require immediate attention, such as a watchdog timer overflow or a power failure.
  • The ADC on the R5F104BCAFP#V0 is a 10-bit successive approximation ADC. To use it, configure the ADC clock, select the analog input channel, and start the conversion. The ADC result can be read from the ADC data register.
  • The maximum operating frequency of the R5F104BCAFP#V0 is 32 MHz at 5V and 20 MHz at 3V.
