R5F104BCANA#V0 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104BCANA#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

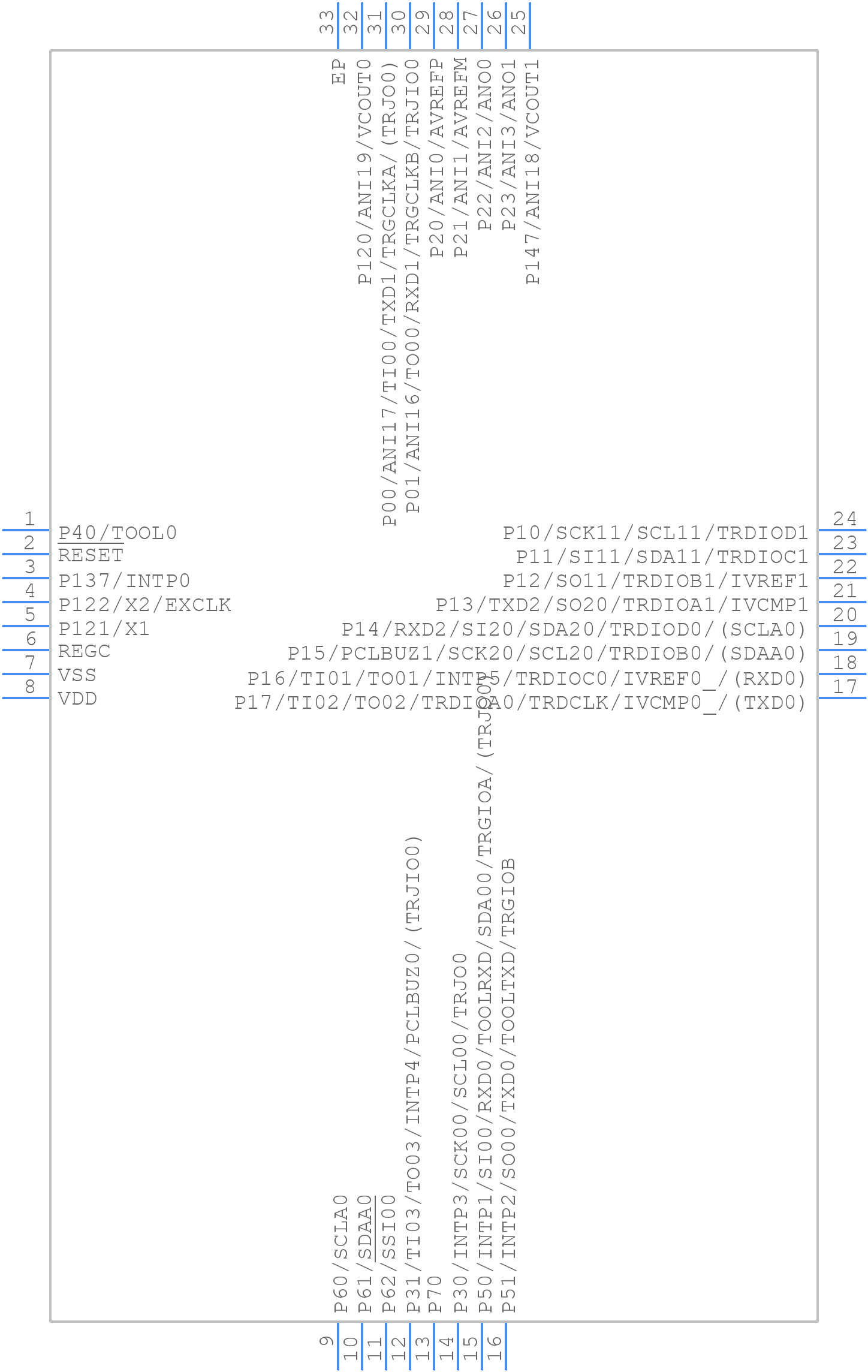

R5F104BCANA#V0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F104BCANA#V0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0032KB-A
click to zoom
3D Models
R5F104BCANA#V0 - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0032KB-A
click to zoom

R5F104BCANA#V0 Details

  • Manufacturer Part Number:

    R5F104BCANA#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HWQFN

  • Package Description:

    WQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    1R020000ZA

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    NO

  • Number of I/O Lines:

    28

  • Number of Terminals:

    32

  • PWM Channels:

    YES

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F104BCANA#V0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for R5F104BCANA#V0 is 2.7V to 5.5V.
  • The clock settings for R5F104BCANA#V0 can be configured using the Clock Generator Unit (CGU) and the Clock Control Unit (CCU). Refer to the user manual for detailed instructions.
  • The maximum clock frequency supported by R5F104BCANA#V0 is 32 MHz.
  • The ADC on R5F104BCANA#V0 can be used by configuring the ADC channel, setting the conversion mode, and enabling the ADC clock. Refer to the user manual for detailed instructions.
  • The VBAT pin on R5F104BCANA#V0 is used to connect a battery or a power source to the internal voltage regulator, which provides power to the MCU during low-power modes.
