R5F104JGAFA#10 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104JGAFA#10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

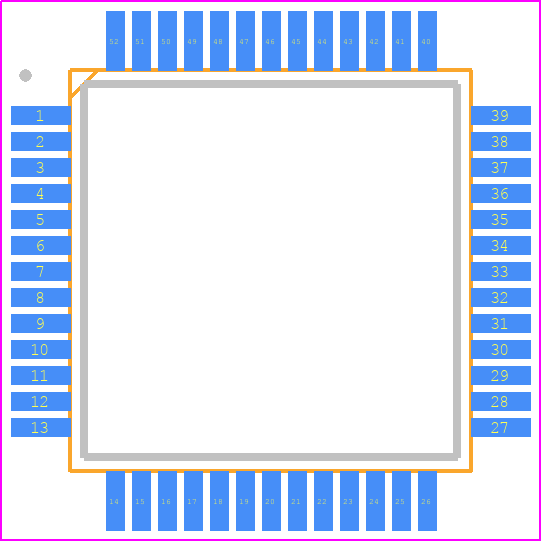

R5F104JGAFA#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0052JA-A
click to zoom
3D Models
R5F104JGAFA#10 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0052JA-A
click to zoom

R5F104JGAFA#10 Details

  • Manufacturer Part Number:

    R5F104JGAFA#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    PLQP0052JA

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G52

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    48

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    52

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP52,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Packing Method:

    TRAY

  • RAM (bytes):

    16384

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    10.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F104JGAFA#10 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • During reset, the JTAG interface should be tri-stated to prevent any unwanted data from being written to the device. This can be done by asserting the TRST signal or by using an external reset controller.
  • The maximum clock frequency is 32 MHz, but it's recommended to use a frequency of 16 MHz or lower to ensure reliable operation and minimize power consumption.
  • The WDT can be configured using the WDT control register. The WDT clock source, timeout period, and reset type can be selected using the WDT control register. Refer to the user manual for detailed configuration options.
  • The NMI pin is used to generate a non-maskable interrupt, which can be used to handle critical system events such as a watchdog timer timeout or a power failure. The NMI interrupt has the highest priority and cannot be masked by the CPU.
