R5F104MHAFA#V0 - Renesas Electronics

Description: RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance saf

Download R5F104MHAFA#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

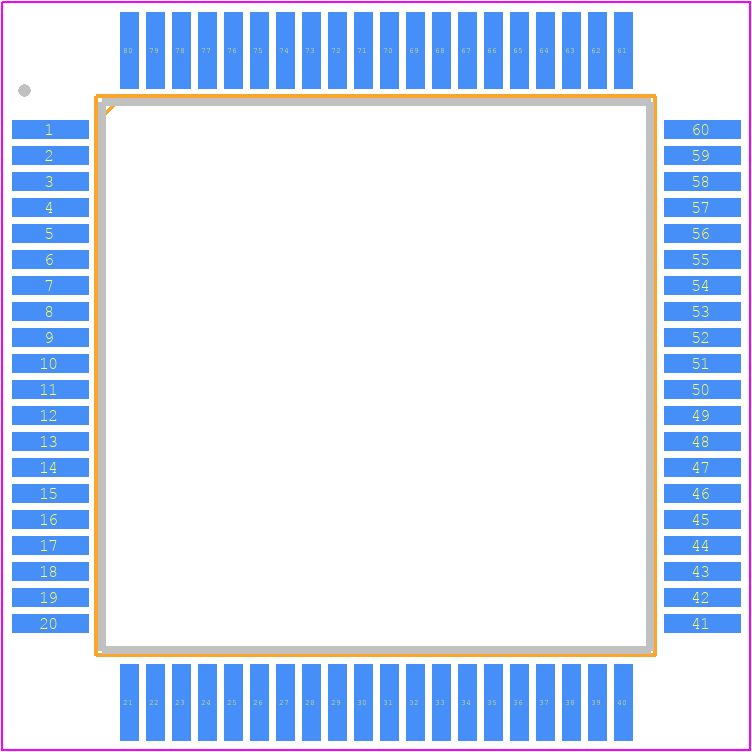

R5F104MHAFA#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080JB-E
click to zoom
3D Models
R5F104MHAFA#V0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0080JB-E
click to zoom

R5F104MHAFA#V0 Details

  • Manufacturer Part Number:

    R5F104MHAFA#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080JB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    74

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    80

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP80,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    20480

  • ROM (words):

    196608

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    10.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F104MHAFA#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating frequency of the R5F104MHAFA#V0 is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
  • The WDT can be enabled or disabled using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the device in case of a software or hardware fault. The timeout period can be set using the Watchdog Timer Counter Register (WDTCCR).
  • The BOD is used to detect a drop in the power supply voltage and reset the device if the voltage falls below a certain threshold. This helps to prevent the device from operating erratically or unpredictably during a power failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F104MHAFA#V0 Overview

Use the download button to access the R5F104MHAFA#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F10, or try a keyword search, such as Microcontrollers

Parts related to R5F104MHAFA#V0

Showing 0 results

R5F104MHAFA#V0 Alternates

Showing results

Image Part Number Model
Part Image R5F104MHGFA#50 Renesas Electronics Corporation

Microcontroller, 16-Bit, FLASH, RL78 CPU, 32MHz, CMOS, PQFP80

Part Image R5F104MHDFA Renesas Electronics Corporation

Microcontroller, 16-Bit, FLASH, RL78 CPU, 32MHz, CMOS, PQFP80

Part Image R5F104MHAFA#30 Renesas Electronics Corporation

Microcontroller, 16-Bit, FLASH, RL78 CPU, 32MHz, CMOS, PQFP80

Part Image R5F104MHDFA#V0 Renesas Electronics Corporation

Microcontroller, 16-Bit, FLASH, RL78 CPU, 32MHz, CMOS, PQFP80

Part Image R5F104MHDFA#10 Renesas Electronics Corporation

Microcontroller, 16-Bit, FLASH, RL78 CPU, 32MHz, CMOS, PQFP80

For a full list of alternate parts for R5F104MHAFA#V0, check out Findchips.com
