R5F1076CGSP - Renesas Electronics

Description: Renesas Electronics R5F1076CGSP, 16bit RL78 Microcontroller, 32MHz, 32 kB Flash, 20-Pin LSSOP

Download R5F1076CGSP Model

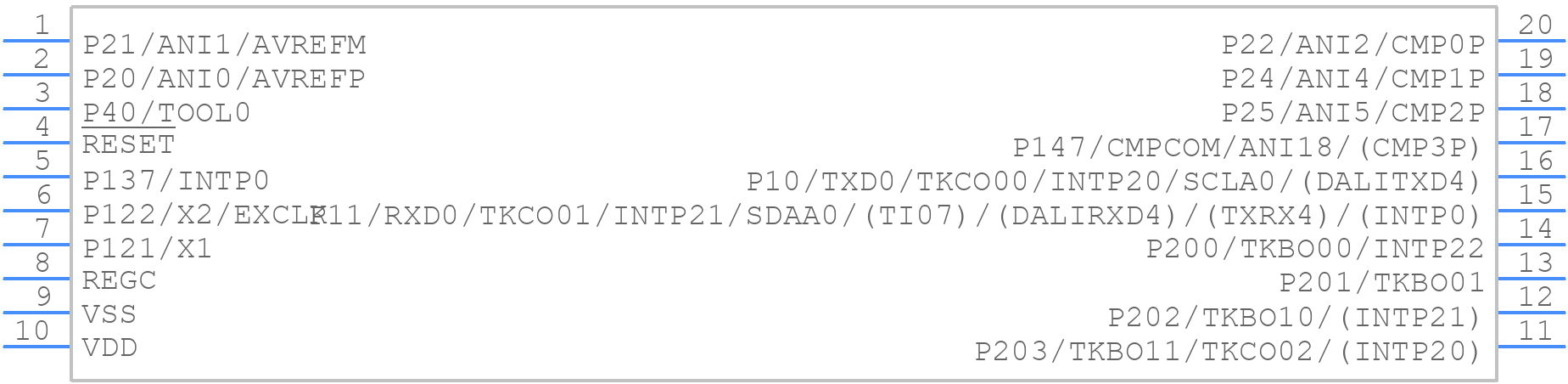

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

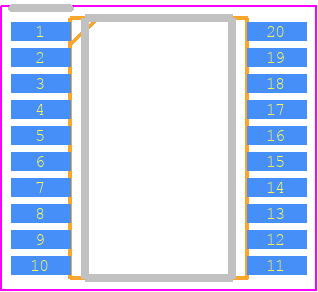

R5F1076CGSP - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - P-LSSOP20-4.4x6.5-0.65
click to zoom
3D Models
R5F1076CGSP - Renesas Electronics  - 3D model - Small Outline Packages - P-LSSOP20-4.4x6.5-0.65
click to zoom

R5F1076CGSP Details

  • Manufacturer Part Number:

    R5F1076CGSP

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 X 6.50 MM, 0.65 MM PITCH, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.45 mm

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
