R5F107ACGSP#V0 - Renesas Electronics

Description: RL78/I1A microcontrollers realize PWM output of a minimum 0.98 ns resolution using 64 MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3 mA during LED and power supply control and 0.23 μA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 li

Download R5F107ACGSP#V0 Model

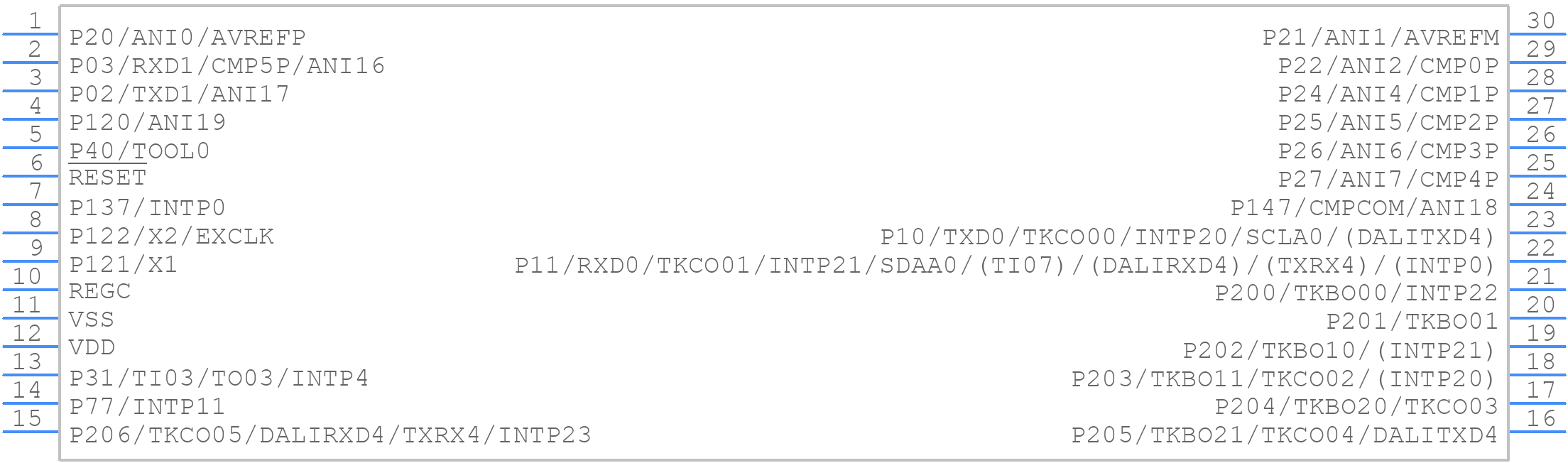

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F107ACGSP#V0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B
click to zoom
3D Models
R5F107ACGSP#V0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0030JB-B
click to zoom

R5F107ACGSP#V0 Details

  • Manufacturer Part Number:

    R5F107ACGSP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F107ACGSP#V0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for R5F107ACGSP#V0 is 2.7V to 5.5V.
  • The clock settings for the R5F107ACGSP#V0 can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum clock frequency supported by the R5F107ACGSP#V0 is 32 MHz.
  • The ADC on the R5F107ACGSP#V0 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register addresses and bit settings.
  • The Watchdog Timer (WDT) on the R5F107ACGSP#V0 is used to reset the microcontroller in case of a software fault or hang-up. It can be configured to generate a reset signal after a specified time period if the software fails to refresh the WDT counter.
