R5F107ACGSP#X0 - Renesas Electronics

Description: RL78/I1A microcontrollers realize PWM output of a minimum 0.98 ns resolution using 64 MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3 mA during LED and power supply control and 0.23 μA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 li

Download R5F107ACGSP#X0 Model

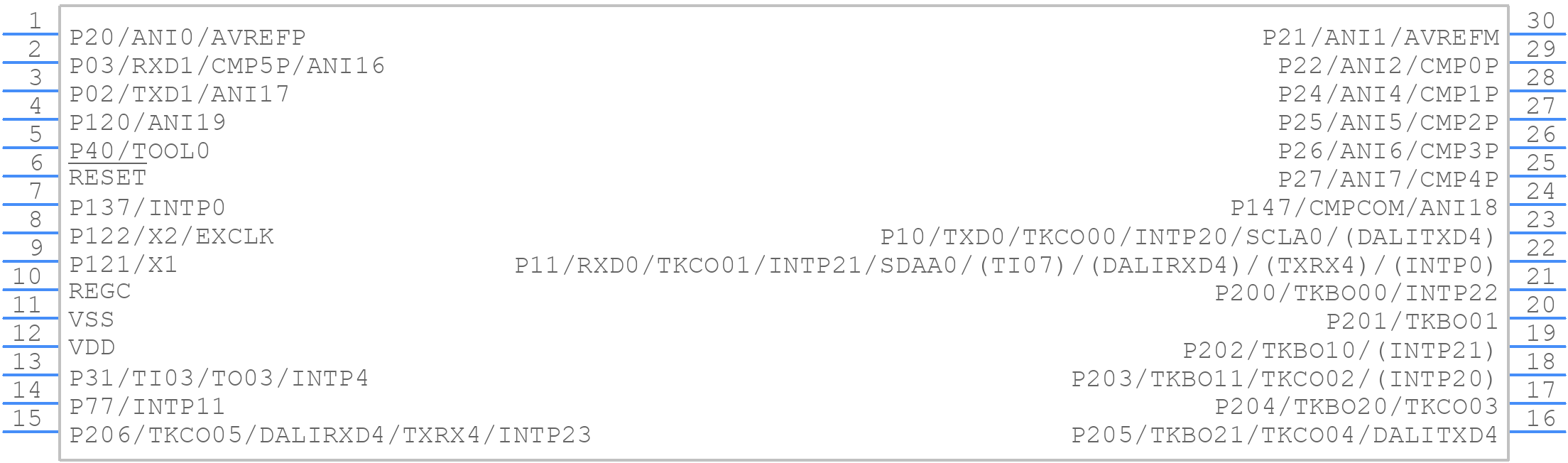

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F107ACGSP#X0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - LSSOP
click to zoom
3D Models
R5F107ACGSP#X0 - Renesas Electronics  - 3D model - Small Outline Packages - LSSOP
click to zoom

R5F107ACGSP#X0 Details

  • Manufacturer Part Number:

    R5F107ACGSP#X0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F107ACGSP#X0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and clock configuration options.
  • The maximum operating frequency of the R5F107ACGSP#X0 is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature ranges.
  • The ADC can be used by configuring the ADC Control Register (ADCCR) and the ADC Channel Select Register (ADCSR). Refer to the user manual for specific register settings and ADC conversion procedures.
  • The NMI (Non-Maskable Interrupt) pin is used to generate a non-maskable interrupt, which can be used to trigger an interrupt service routine for critical events such as a watchdog timer overflow or a power-on reset.
