R5F107AEMSP#X0 - Renesas Electronics

Description: RL78/I1A microcontrollers realize PWM output of a minimum 0.98 ns resolution using 64 MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3 mA during LED and power supply control and 0.23 μA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 li

Download R5F107AEMSP#X0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

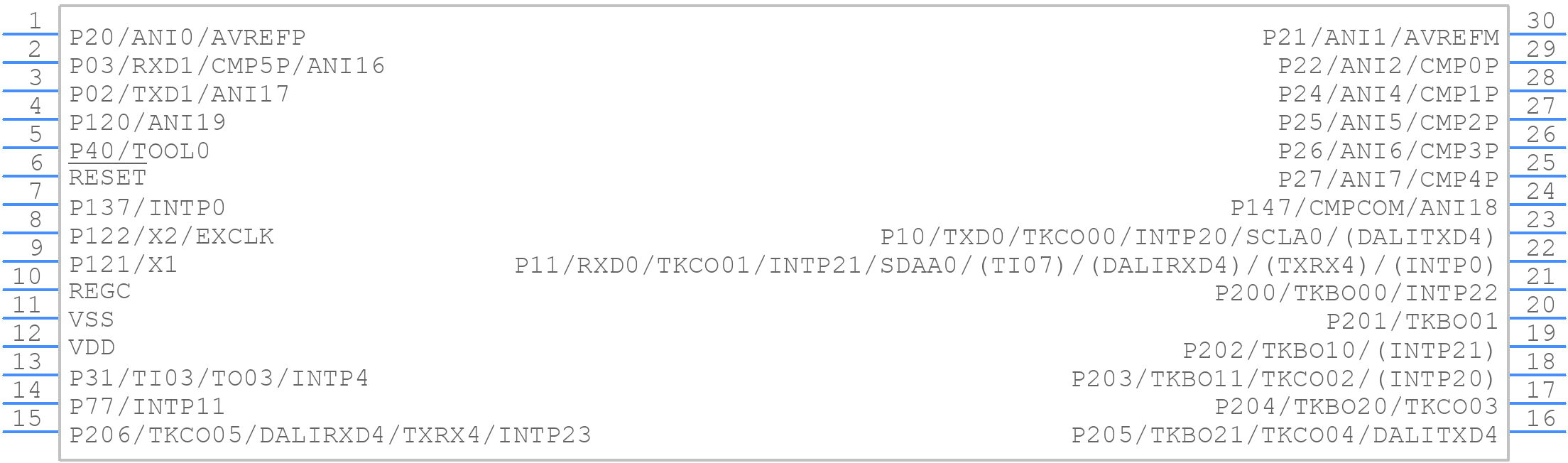

Symbol
R5F107AEMSP#X0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F107AEMSP#X0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - R5F107AEGSP#X0
click to zoom
3D Models
R5F107AEMSP#X0 - Renesas Electronics - 3D model - Small Outline Packages - R5F107AEGSP#X0
click to zoom

R5F107AEMSP#X0 Details

  • Manufacturer Part Number:

    R5F107AEMSP#X0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F107AEMSP#X0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the PLL Control Register (PCR). The CCR sets the clock source and frequency, while the PCR configures the PLL settings. Refer to the user manual for detailed instructions.
  • The maximum operating temperature range for the R5F107AEMSP#X0 is -40°C to +125°C. However, the device can operate at a reduced frequency and voltage range at higher temperatures.
  • The R5F107AEMSP#X0 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The watchdog timer can be set to reset the device or generate an interrupt if the timer expires.
  • The recommended layout and routing for the R5F107AEMSP#X0 involves keeping the power and ground pins separate, using a solid ground plane, and minimizing signal trace lengths and vias. Refer to the application note for detailed guidelines.
