R5F109ADKSP#X0G - Renesas Electronics

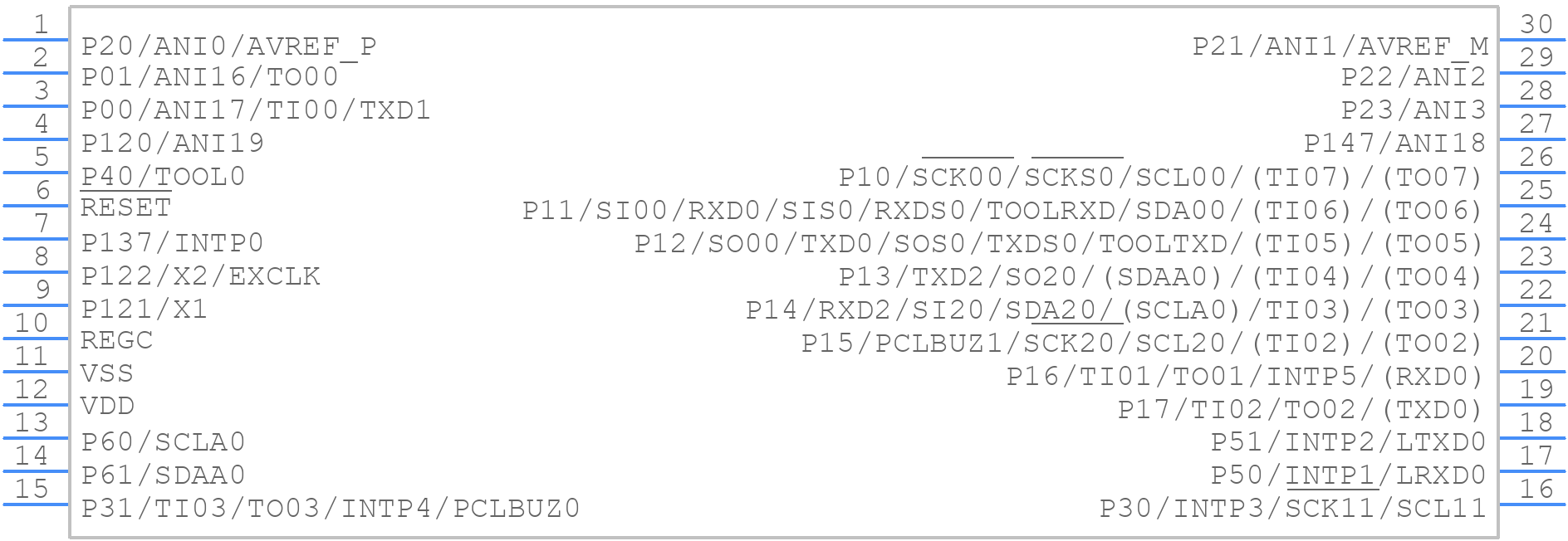

R5F109ADKSP#X0G Details

• Manufacturer Part Number:

  R5F109ADKSP#X0G

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LSSOP

• Package Description:

  SSOP-30

• Pin Count:

  30

• Manufacturer Package Code:

  PLSP0030JB

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6

• Has ADC:

  YES

• Additional Feature:

  OPERATES WITH 8MHZ @1.8V ; ADC AVAILABLE IN 8-BIT ALSO

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  RL78

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G30

• Length:

  9.85 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  2

• Number of External Interrupts:

  6

• Number of I/O Lines:

  26

• Number of Serial I/Os:

  5

• Number of Terminals:

  30

• Number of Timers:

  10

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  SSOP30,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• RAM (bytes):

  3072

• ROM (words):

  49152

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.4 mm

• Speed:

  32 MHz

• Supply Current-Max:

  6.9 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
