R5F10NMJDFB#30 - Renesas Electronics

Description: IC MCU 16BIT 256KB FLASH 80LFQFP

Download R5F10NMJDFB#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

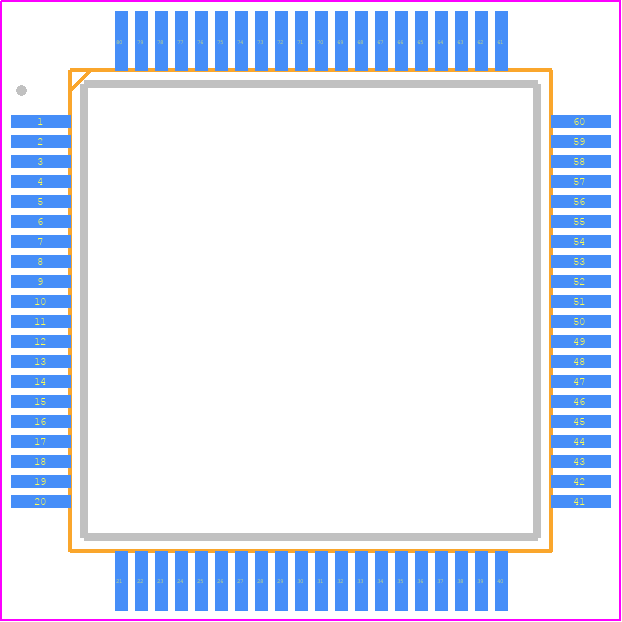

R5F10NMJDFB#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LFQFP80-12x12-0.50
click to zoom
3D Models
R5F10NMJDFB#30 - Renesas Electronics  - 3D model - Quad Flat Packages - P-LFQFP80-12x12-0.50
click to zoom

R5F10NMJDFB#30 Details

  • Manufacturer Part Number:

    R5F10NMJDFB#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080KB

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    operates with 1.7V MIN @ 4 MHZ

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    12

  • Number of I/O Lines:

    52

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    80

  • Number of Timers:

    15

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP80,.55SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    16384

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    8.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, CISC

R5F10NMJDFB#30 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R5F10NMJDFB#30 is 2.7V to 5.5V, with a typical voltage of 3.3V.
  • The clock settings for the R5F10NMJDFB#30 can be configured using the Clock Generator Unit (CGU) and the Clock Control Unit (CCU). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the R5F10NMJDFB#30 is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature ranges.
  • The R5F10NMJDFB#30 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Unit (PMU) and the Clock Control Unit (CCU). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The R5F10NMJDFB#30 has 256 KB of Flash memory and 16 KB of RAM.
