R5F10RGCGFB#10 - Renesas Electronics

Description: RL78/L12 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.60 μANote 2, internal voltage boost: 1.19 μA, and capacitive split: 0.68 µA. With a lineup of 32 to 64-pin products supporting up to 280 segments, these microcontrollers are perfect for s

Download R5F10RGCGFB#10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

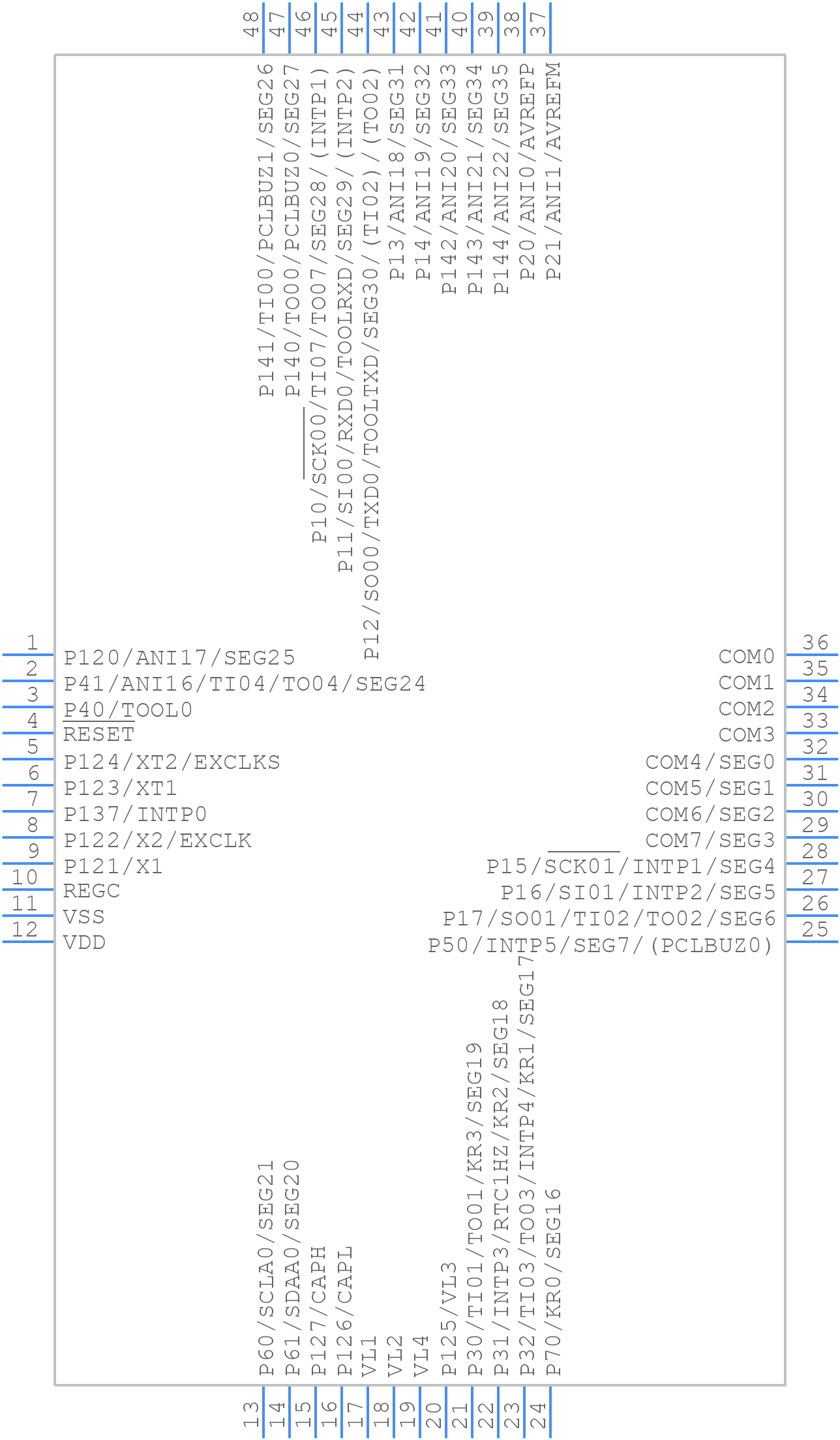

Symbol
R5F10RGCGFB#10 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F10RGCGFB#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-B
click to zoom
3D Models
R5F10RGCGFB#10 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB-B
click to zoom

R5F10RGCGFB#10 Details

  • Manufacturer Part Number:

    R5F10RGCGFB#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.6 MINIMUM SUPPLY AT 4 MHZ

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    33

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    48

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    1536

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F10RGCGFB#10 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and to minimize electromagnetic interference (EMI).
  • Renesas provides a Secure Firmware Update (SFU) solution that enables secure boot and firmware updates. Engineers can use the Renesas Flash Development Toolkit (FDT) and the SFU library to implement secure firmware updates. Additionally, Renesas offers a Secure Boot Kit that provides a reference implementation for secure boot.
  • While the datasheet provides some power consumption and thermal characteristics, engineers may need more detailed information. Renesas provides power consumption and thermal characteristic data in their application notes and design guides. Additionally, engineers can use tools like the Renesas Power Simulator to estimate power consumption and thermal characteristics.
  • Renesas provides various tools and resources to help optimize performance, such as the Renesas Compiler Package, which includes a compiler, assembler, and linker. Engineers can also use the Renesas Profiler to analyze and optimize the performance of their application.
  • Renesas offers various development boards and evaluation kits for the R5F10RGCGFB#10, such as the Renesas Starter Kit for RX100 and the Renesas Evaluation Board for RX100. These boards provide a platform for engineers to develop and test their applications.
