R5F10WMDAFA#10 - Renesas Electronics

Description: RL78/L13 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.61 μANote 2, and internal voltage boost: 1.42 μA, and capacitive split: 0.77 µA. With a lineup of 64/80-pin products supporting up to 376 segments, these microcontrollers are perfect for

Download R5F10WMDAFA#10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F10WMDAFA#10 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

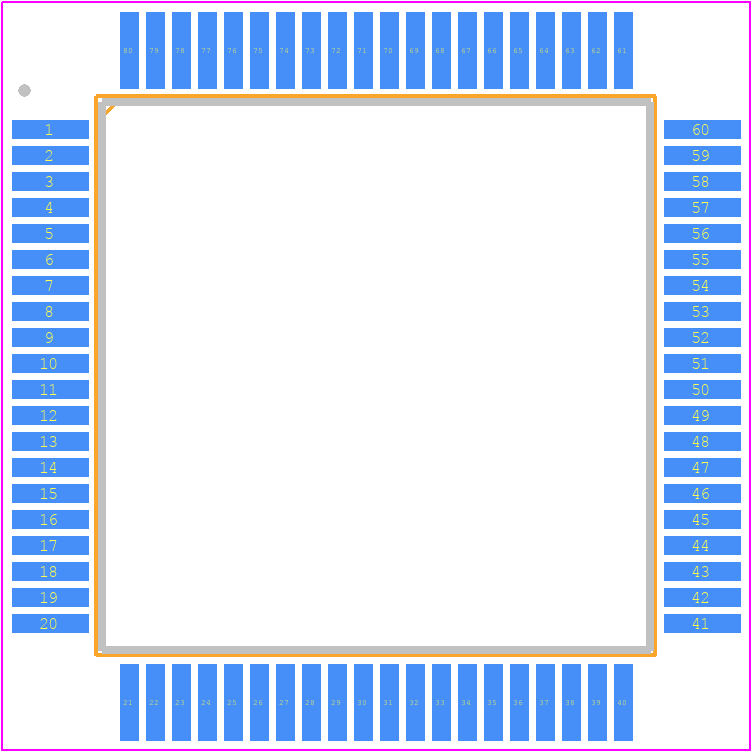

R5F10WMDAFA#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080JB-E
click to zoom
3D Models
R5F10WMDAFA#10 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0080JB-E
click to zoom

R5F10WMDAFA#10 Details

  • Manufacturer Part Number:

    R5F10WMDAFA#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080JB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    9

  • Has ADC:

    YES

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    11

  • Number of I/O Lines:

    65

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    80

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP80,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • RAM (bytes):

    2048

  • ROM (words):

    49152

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F10WMDAFA#10 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R5F10WMDAFA#10 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • The R5F10WMDAFA#10 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control registers. The WDT can be set to reset the device after a specified timeout period if the software fails to refresh the WDT within that period. Refer to the datasheet and the Renesas documentation for detailed instructions on implementing the WDT.
  • The R5F10WMDAFA#10 can operate at a maximum clock frequency of 32 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the specific application and the clock source used.
  • The R5F10WMDAFA#10 has a 10-bit analog-to-digital converter (ADC) that can be used to convert analog signals to digital values. To use the ADC, you need to configure the ADC control registers, select the analog input channel, and initiate the conversion process. The ADC can operate in various modes, including single-shot and continuous conversion modes. Refer to the datasheet and the Renesas documentation for detailed instructions on using the ADC.
  • The power consumption of the R5F10WMDAFA#10 in sleep mode depends on the specific sleep mode and the configuration of the device. According to the datasheet, the typical current consumption in sleep mode is around 1.5 μA. However, this value can vary depending on the application and the device configuration.
