R5F11W67ASM#70 - Renesas Electronics

Description: Even though the RL78/G1M microcontroller has a small pin-count 20-pin package, it is an 8-bit general-purpose microcontroller equipped with real-time output terminals for motor drive. It has 120-degree energization control and can drive a BLDC motor. It is suitable for motor control for small home appliances, toys, office automation (OA) equipment, etc.

Download R5F11W67ASM#70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

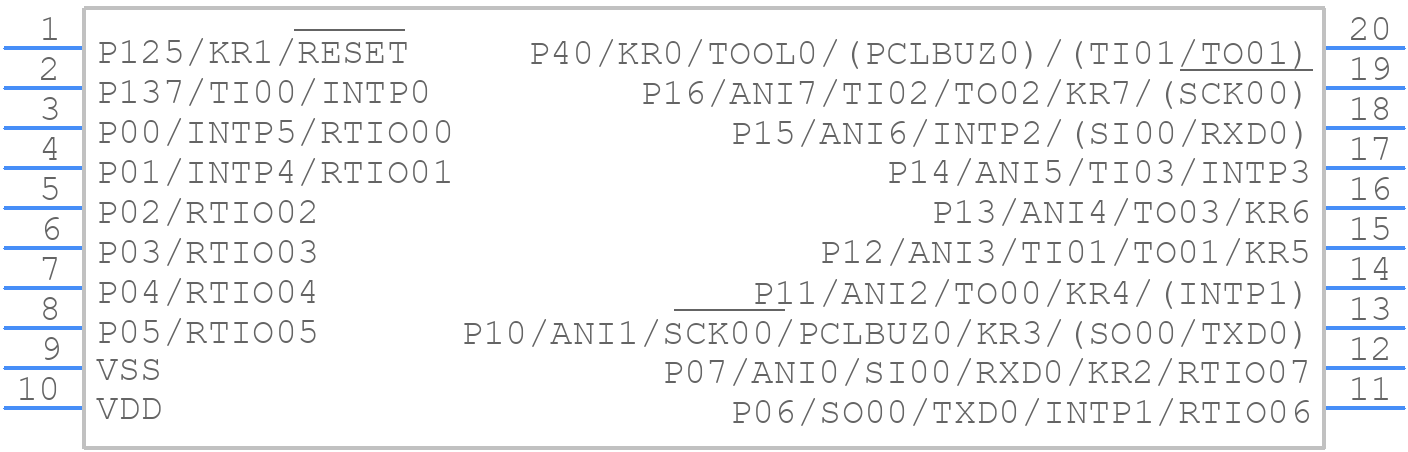

R5F11W67ASM#70 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F11W67ASM#70 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PTSP0020JI-A
click to zoom
3D Models
R5F11W67ASM#70 - Renesas Electronics - 3D model - Small Outline Packages - PTSP0020JI-A
click to zoom

R5F11W67ASM#70 Details

  • Manufacturer Part Number:

    R5F11W67ASM#70

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F11W67ASM#70 Overview

Use the download button to access the R5F11W67ASM#70 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F11, or try a keyword search, such as Microcontrollers
