The recommended power-on sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). The CCR sets the clock frequency, while the CSSR selects the clock source (e.g., internal oscillator, external crystal, or external clock).
The NMI pin is used to trigger a non-maskable interrupt, which has the highest priority and cannot be masked by software. It is typically used for critical events that require immediate attention, such as a watchdog timer timeout or a power failure.
The ADC can be configured using the ADC Control Register (ADCCR) and the ADC Channel Select Register (ADCSR). The ADCCR sets the ADC mode, clock, and trigger, while the ADCSR selects the analog input channel. The ADC conversion result is stored in the ADC Data Register (ADCDR).
The maximum operating frequency of the R5F21276SNFP#U0 is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature ranges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F21276SNFP#U0 Overview

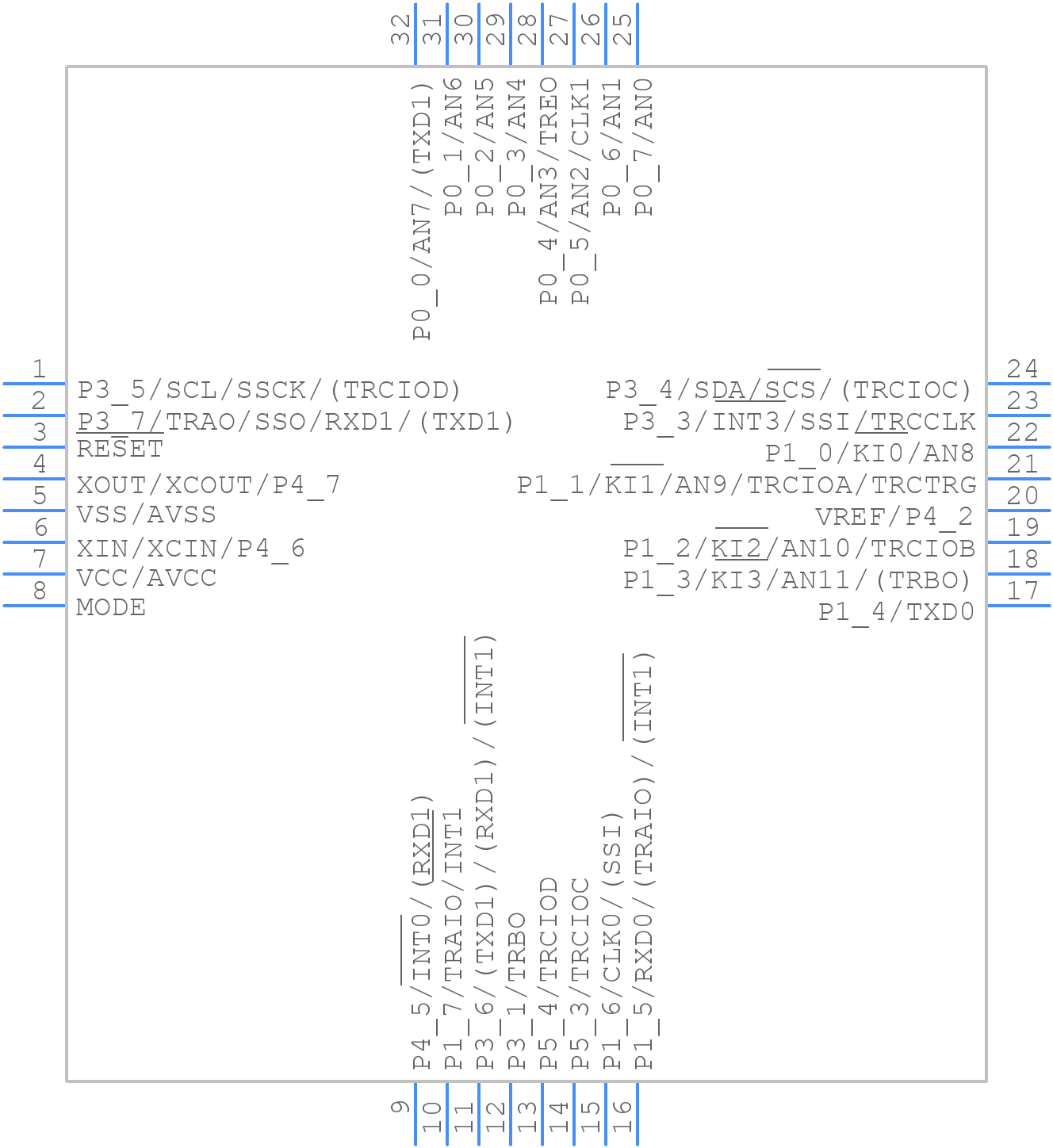

Use the download button to access the R5F21276SNFP#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21,
or try a keyword search, such as Microcontrollers
