Part Image

R5F21282SNSP#U0 - Renesas Electronics

Description: Renesas Electronics R5F21282SNSP#U0, 16bit R8C Microcontroller, 20MHz, 8 kB ROM, 20-Pin LSSOP

Download R5F21282SNSP#U0 Model

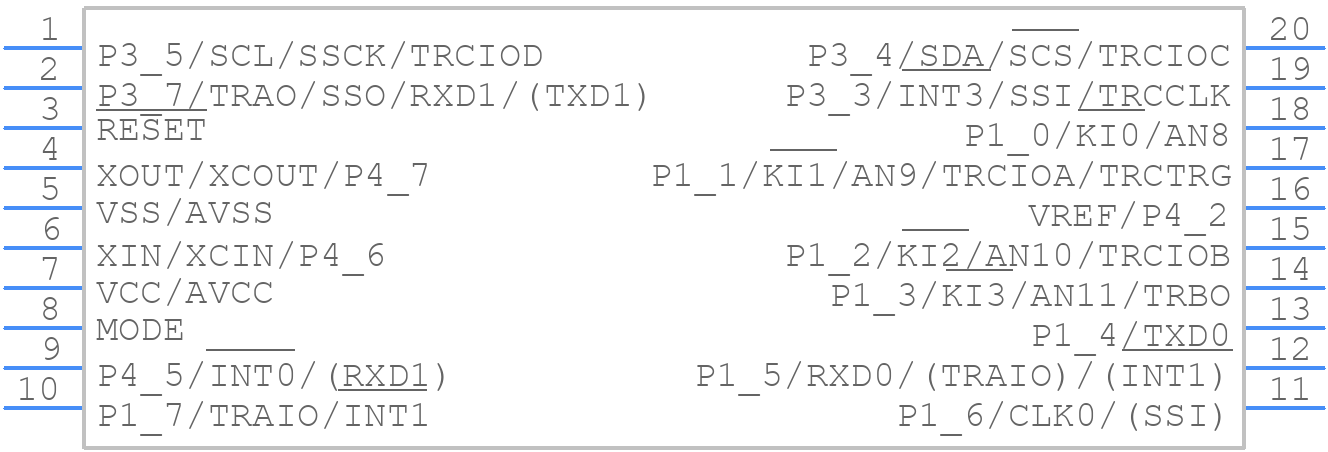

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

R5F21282SNSP#U0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0020JB-A
click to zoom

3D Models

R5F21282SNSP#U0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0020JB-A
click to zoom

R5F21282SNSP#U0 Details

  • Manufacturer Part Number:

    R5F21282SNSP#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP,

  • Pin Count:

    20

  • Manufacturer Package Code:

    PLSP0020JB

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Risk Rank:

    9.25

  • YTEOL:

    3

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES IN 2.2V AT 5MHZ

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.45 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F21282SNSP#U0 Overview

Use the download button to access the R5F21282SNSP#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21, or try a keyword search, such as Microcontrollers

About Renesas Electronics

Renesas is a leading manufacturer of semiconductor devices. They are a global leader in microcontrollers, analog, power, sensors, and timing products. Renesas offers comprehensive solutions for the automotive, industrial, healthcare, consumer electronics, and telecommunications industries.
