Description:The R8C/29 Group is supported only for customers who have already adopted these products. The RL78/G14 Group is recommended for new designs.These MCUs are fabricated using a high-performance silicon gate CMOS process, embedding the R8C CPU core, and are packaged in a 20-pin molded-plastic LSSOP. It implements sophisticated instructions for a high level of instruction efficiency. With 1Mb of address space, they are capable of executing instructions at high speed. Furthermore, the R8C/29 Group has on-chip dat
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
To configure the R5F21292SDSP#U0 for low-power operation, set the Power Management Register (PMR) to enable low-power modes such as Sleep or Deep Sleep. Additionally, adjust the clock frequency and voltage to minimize power consumption.
The maximum operating frequency of the R5F21292SDSP#U0 is 32 MHz, as specified in the datasheet. However, it's essential to consider factors like clock accuracy, power consumption, and thermal management when operating at high frequencies.
The R5F21292SDSP#U0 has a built-in watchdog timer (WDT) that can be enabled and configured through the Watchdog Timer Control Register (WTCR). Set the WTCR to enable the WDT, and configure the timeout period and reset behavior according to your application requirements.
For optimal performance and reliability, ensure proper PCB layout and thermal management. Keep the device away from high-temperature components, use thermal vias, and follow the recommended land pattern and PCB layout guidelines provided in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F21292SDSP#U0 Overview

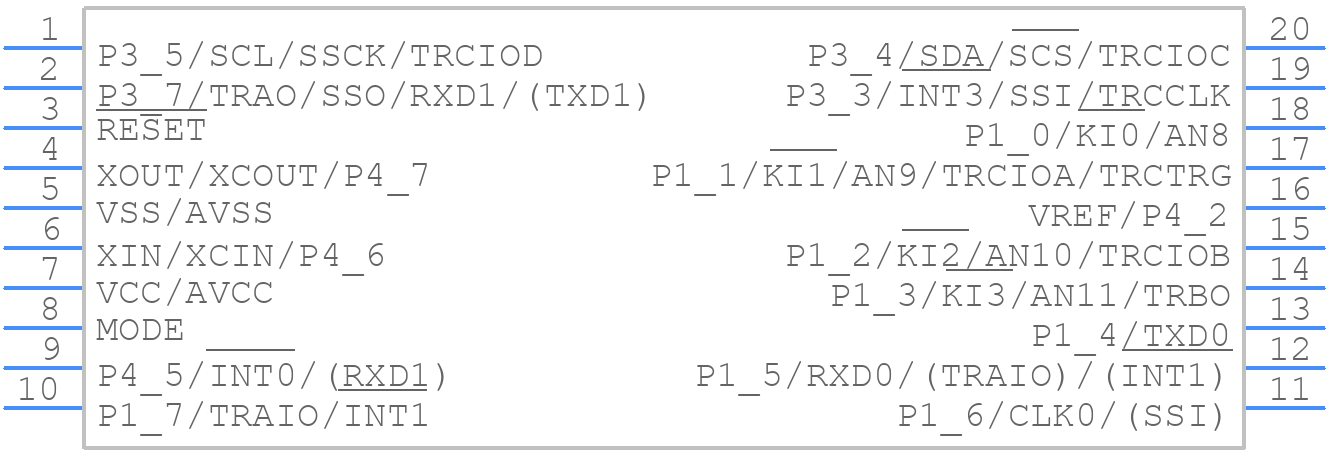

Use the download button to access the R5F21292SDSP#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21,
or try a keyword search, such as Microcontrollers
