R5F21324CDSP#U0 - Renesas Electronics

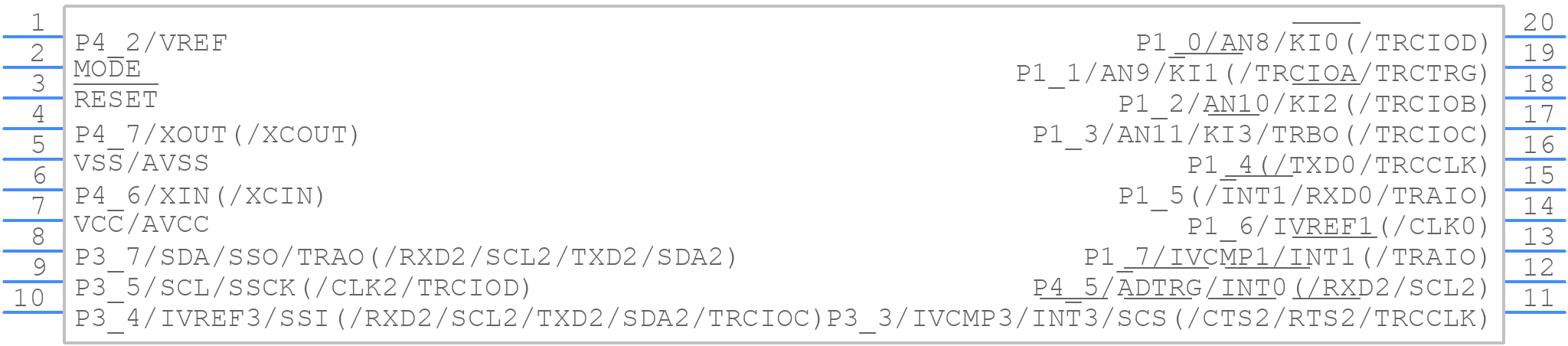

R5F21324CDSP#U0 Details

• Manufacturer Part Number:

  R5F21324CDSP#U0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LSSOP

• Package Description:

  4.40 X 6.50 MM, 0.65 MM PITCH, PLASTIC, LSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  PLSP0020JB

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT ALSO OPERATES IN 1.8V AT 5MHZ

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e2

• Length:

  6.5 mm

• Number of I/O Lines:

  16

• Number of Terminals:

  20

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  SSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1536

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.45 mm

• Speed:

  20 MHz

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN COPPER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
