R5F21336CDFP#30 - Renesas Electronics

Description: The R8C/33C Group is supported only for customers who have already adopted these products.The R8C/33C Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating modes allow additional power control. These MCUs are designed

Download R5F21336CDFP#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

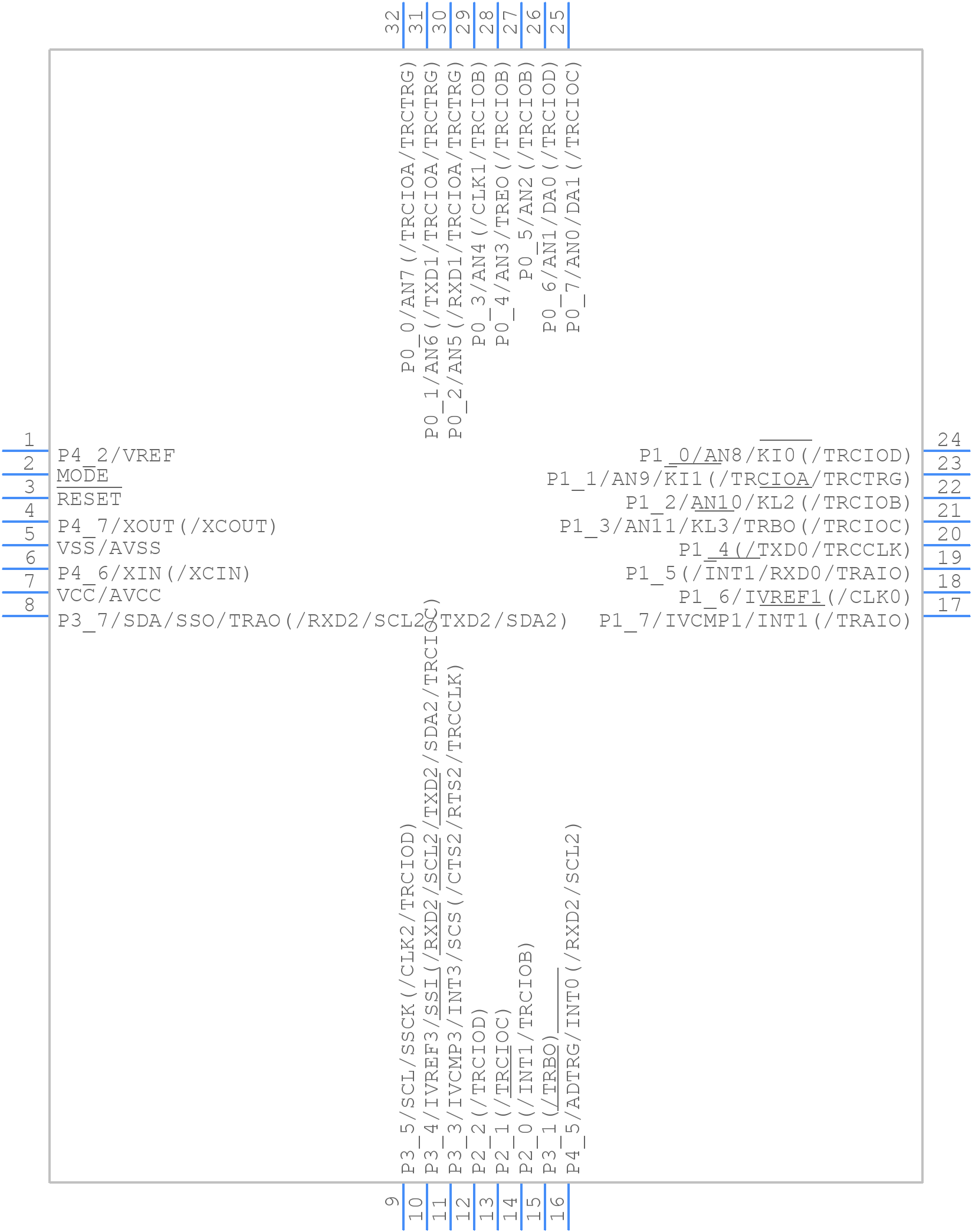

R5F21336CDFP#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F21336CDFP#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom
3D Models
R5F21336CDFP#30 - Renesas Electronics - 3D model - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom

R5F21336CDFP#30 Details

  • Manufacturer Part Number:

    R5F21336CDFP#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLQP0032GB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21336CDFP#30 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the R5F21336CDFP#30 is 32 MHz.
  • The R5F21336CDFP#30 has 128 KB of flash memory.
  • The minimum operating voltage of the R5F21336CDFP#30 is 2.7 V.
  • Yes, the R5F21336CDFP#30 has a built-in oscillator that can be used as a clock source.
  • The maximum current consumption of the R5F21336CDFP#30 is approximately 15 mA at 32 MHz.
